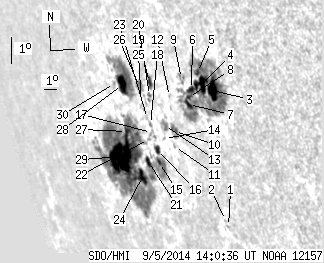

SDO HMI 2014-09-05 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.06 | 631.98 | 153.28 | 851.38 | -13.69 | 94.68 | -65.59 | 107.89 | 0.9298 | -37.1 | -56.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 1.04 | -16.21 | 99.18 | -61.10 | 111.75 | 0.9068 | -273.0 | -312.8 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -16.03 | 99.08 | -61.20 | 111.52 | 0.9071 | -162.0 | -167.7 | |
| 13.48 | 189.68 | 14.57 | 209.30 | -11.75 | 100.16 | -60.12 | 107.24 | 0.8907 | 723.7 | 220.1 | |
| 14.29 | -3.00 | 15.76 | -3.00 | -11.63 | 99.51 | -60.77 | 106.93 | 0.8953 | 447.7 | 999999 | |
| 1.88 | -3.00 | 2.07 | -3.00 | -11.27 | 99.39 | -60.89 | 106.50 | 0.8955 | 346.9 | 999999 | |
| 2.95 | -3.00 | 3.34 | -3.00 | -11.87 | 98.77 | -61.51 | 106.99 | 0.9011 | 334.5 | 999999 | |
| 3.57 | -3.00 | 4.12 | -3.00 | -12.39 | 98.36 | -61.92 | 107.44 | 0.9050 | 344.6 | 999999 | |
| 1.34 | -3.00 | 1.54 | -3.00 | -12.16 | 98.45 | -61.82 | 107.22 | 0.9039 | 386.8 | 999999 | |
| 0.00 | 4.55 | 0.00 | 5.24 | -11.59 | 98.22 | -62.05 | 106.54 | 0.9045 | 546.0 | 318.8 | |
| 0.00 | 7.68 | 0.00 | 9.42 | -13.41 | 96.95 | -63.33 | 108.16 | 0.9165 | 596.0 | 434.3 | |
| 0.00 | 1.43 | 0.00 | 1.78 | -13.92 | 96.69 | -63.58 | 108.63 | 0.9190 | 398.0 | 388.1 | |
| 0.00 | 0.98 | 0.00 | 1.18 | -12.28 | 97.12 | -63.16 | 107.00 | 0.9134 | -197.0 | -132.5 | |
| 0.00 | 7.32 | 0.00 | 9.20 | -13.30 | 96.30 | -63.98 | 107.87 | 0.9205 | -480.0 | -440.5 | |
| 0.00 | 0.89 | 0.00 | 1.14 | -13.74 | 96.07 | -64.20 | 108.27 | 0.9227 | -300.0 | -158.1 | |
| 1.52 | 342.39 | 2.01 | 510.23 | -14.60 | 95.24 | -65.04 | 108.97 | 0.9293 | 490.5 | -140.6 | |
| 3.13 | -15.00 | 4.11 | -15.00 | -14.18 | 95.33 | -64.95 | 108.54 | 0.9280 | 417.4 | 999999 | |
| 0.00 | 2.32 | 0.00 | 3.06 | -13.65 | 95.16 | -65.11 | 107.95 | 0.9282 | -297.0 | -311.5 | |
| 0.00 | 1.79 | 0.00 | 2.34 | -13.39 | 95.23 | -65.05 | 107.69 | 0.9274 | -556.0 | -499.6 | |
| 2.95 | 5.80 | 3.71 | 7.32 | -11.99 | 95.84 | -64.44 | 106.37 | 0.9214 | 301.9 | 164.5 | |
| 0.63 | 3.21 | 0.80 | 4.12 | -12.42 | 95.63 | -64.64 | 106.78 | 0.9234 | 367.9 | 234.0 | |
| 3.93 | -15.00 | 5.41 | -15.00 | -14.67 | 94.36 | -65.92 | 108.82 | 0.9346 | 235.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 1.32 | -13.92 | 94.79 | -65.48 | 108.14 | 0.9309 | -350.0 | -316.2 | |
| 0.00 | 0.80 | 0.00 | 1.06 | -13.22 | 95.09 | -65.18 | 107.48 | 0.9280 | -407.0 | -386.9 | |
| 8.22 | -15.00 | 11.83 | -15.00 | -15.25 | 93.53 | -66.75 | 109.21 | 0.9402 | 268.3 | 999999 | |
| 0.00 | 1.43 | 0.00 | 1.89 | -12.83 | 94.84 | -65.43 | 107.01 | 0.9290 | -247.0 | -231.2 | |
| 0.00 | 6.61 | 0.00 | 8.63 | -12.21 | 95.00 | -65.28 | 106.40 | 0.9271 | -140.0 | -103.3 | |
| 1.96 | -15.00 | 2.83 | -15.00 | -13.87 | 93.10 | -67.18 | 107.67 | 0.9407 | -652.0 | 999999 | |
| 12.95 | 51.80 | 17.95 | 71.14 | -12.31 | 93.64 | -66.63 | 106.18 | 0.9354 | -422.4 | -314.6 | |
| 41.26 | -15.00 | 63.23 | -15.00 | -14.78 | 92.10 | -68.17 | 108.39 | 0.9473 | -400.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 1.66 | -12.36 | 92.98 | -67.30 | 106.08 | 0.9393 | 366.0 | 343.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
