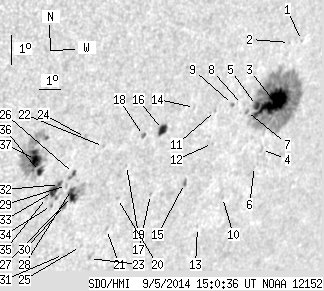

SDO HMI 2014-09-05 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.87 | 371.52 | 65.45 | 300.55 | -14.64 | 207.28 | 47.56 | 244.81 | 0.7891 | 138.4 | 7.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.31 | -12.25 | 211.38 | 51.66 | 249.48 | 0.8205 | -236.0 | -224.5 | |
| 0.00 | 0.71 | 0.00 | 0.61 | -12.26 | 210.78 | 51.06 | 249.26 | 0.8150 | -193.0 | -191.2 | |
| 39.82 | 215.73 | 34.21 | 185.87 | -14.12 | 210.58 | 50.86 | 247.01 | 0.8192 | 933.8 | 197.1 | |
| 0.00 | 1.96 | 0.00 | 1.70 | -15.65 | 210.43 | 50.71 | 245.20 | 0.8232 | 242.0 | 331.1 | |
| 3.75 | -3.00 | 3.16 | -3.00 | -14.16 | 209.71 | 49.98 | 246.61 | 0.8112 | 939.2 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.47 | -16.19 | 210.27 | 50.55 | 244.52 | 0.8236 | -440.0 | -407.2 | |
| 0.00 | 2.14 | 0.00 | 1.79 | -14.31 | 209.27 | 49.54 | 246.26 | 0.8077 | 750.0 | 629.0 | |
| 0.00 | 0.36 | 0.00 | 0.30 | -14.06 | 209.00 | 49.28 | 246.44 | 0.8042 | 428.0 | 497.8 | |
| 0.00 | 1.61 | 0.00 | 1.32 | -14.01 | 208.51 | 48.78 | 246.29 | 0.7994 | 724.0 | 654.4 | |
| 0.00 | 0.80 | 0.00 | 0.68 | -17.07 | 209.01 | 49.29 | 242.97 | 0.8156 | 79.0 | 158.4 | |
| 0.00 | 1.25 | 0.00 | 1.01 | -14.12 | 207.74 | 48.01 | 245.82 | 0.7924 | 663.0 | 560.4 | |
| 0.00 | 0.71 | 0.00 | 0.58 | -15.21 | 207.91 | 48.19 | 244.63 | 0.7983 | 475.0 | 393.5 | |
| 0.00 | 0.63 | 0.00 | 0.53 | -17.97 | 208.13 | 48.40 | 241.54 | 0.8113 | 496.0 | 415.1 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -13.93 | 206.71 | 46.99 | 245.59 | 0.7816 | -239.0 | -216.1 | |
| 0.63 | 2.50 | 0.51 | 2.03 | -16.41 | 206.98 | 47.25 | 242.79 | 0.7944 | 628.4 | 491.7 | |
| 5.89 | 8.13 | 4.57 | 6.30 | -14.51 | 205.41 | 45.69 | 244.28 | 0.7712 | -545.3 | -326.9 | |
| 0.00 | 1.16 | 0.00 | 0.92 | -16.63 | 205.48 | 45.76 | 241.80 | 0.7811 | -443.0 | -338.8 | |
| 0.80 | 2.05 | 0.61 | 1.57 | -14.63 | 204.60 | 44.87 | 243.74 | 0.7635 | 703.6 | 597.2 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -15.55 | 204.09 | 44.37 | 242.37 | 0.7627 | -456.0 | -376.3 | |
| 0.00 | 1.43 | 0.00 | 1.10 | -16.62 | 204.00 | 44.27 | 241.05 | 0.7668 | -607.0 | -470.8 | |
| 0.00 | 1.25 | 0.00 | 0.97 | -17.62 | 203.81 | 44.09 | 239.77 | 0.7698 | -535.0 | -432.8 | |
| 0.00 | 0.80 | 0.00 | 0.60 | -14.83 | 202.90 | 43.18 | 242.62 | 0.7472 | -213.0 | -152.8 | |
| 0.00 | 0.89 | 0.00 | 0.69 | -18.54 | 203.35 | 43.62 | 238.44 | 0.7699 | -495.0 | -400.2 | |
| 0.00 | 2.14 | 0.00 | 1.56 | -14.46 | 202.05 | 42.32 | 242.61 | 0.7366 | 31.0 | 33.8 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -18.09 | 202.81 | 43.09 | 238.66 | 0.7625 | -172.0 | -269.8 | |
| 1.07 | 4.02 | 0.79 | 2.95 | -15.60 | 201.82 | 42.09 | 241.07 | 0.7400 | -437.2 | -476.6 | |
| 4.91 | 22.50 | 3.63 | 16.69 | -16.36 | 201.93 | 42.20 | 240.21 | 0.7450 | -760.1 | -140.5 | |
| 1.07 | -27.00 | 0.79 | -27.00 | -16.13 | 201.87 | 42.14 | 240.46 | 0.7432 | -704.5 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.11 | -15.98 | 201.61 | 41.89 | 240.50 | 0.7398 | -532.0 | -481.0 | |
| 1.52 | 3.84 | 1.12 | 2.83 | -16.64 | 201.70 | 41.98 | 239.75 | 0.7442 | -600.7 | -506.4 | |
| 0.00 | 0.45 | 0.00 | 0.34 | -18.29 | 202.13 | 42.41 | 238.04 | 0.7571 | -420.0 | -356.4 | |
| 1.25 | 13.39 | 0.91 | 9.77 | -15.92 | 201.30 | 41.58 | 240.40 | 0.7363 | -783.6 | -613.6 | |
| 5.36 | -32.00 | 3.90 | -32.00 | -16.13 | 201.10 | 41.38 | 240.03 | 0.7354 | -936.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.85 | -16.59 | 201.14 | 41.42 | 239.49 | 0.7382 | -648.0 | -562.8 | |
| 0.00 | 1.07 | 0.00 | 0.78 | -16.30 | 200.85 | 41.13 | 239.67 | 0.7338 | -702.0 | -617.7 | |
| 3.57 | 74.02 | 2.56 | 52.46 | -15.41 | 200.34 | 40.62 | 240.46 | 0.7237 | -600.3 | -519.7 | |
| 12.23 | -36.00 | 8.69 | -36.00 | -15.00 | 200.08 | 40.36 | 240.82 | 0.7188 | -933.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
