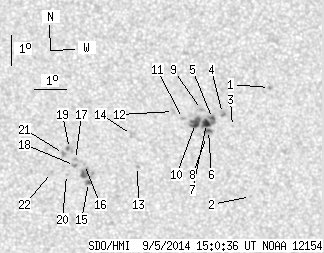

SDO HMI 2014-09-05 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.28 | 67.86 | 7.82 | 37.25 | -18.27 | 159.25 | -0.47 | 179.10 | 0.4335 | 339.9 | 36.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.82 | -16.49 | 162.90 | 3.17 | 187.52 | 0.4073 | 1014.0 | 822.2 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -20.14 | 162.35 | 2.63 | 185.35 | 0.4635 | 658.0 | 559.9 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -17.78 | 161.74 | 2.02 | 184.54 | 0.4257 | 668.0 | 547.2 | |
| 0.00 | 3.21 | 0.00 | 1.75 | -17.34 | 161.42 | 1.70 | 183.89 | 0.4185 | 799.0 | 758.0 | |
| 1.43 | 25.18 | 0.78 | 13.75 | -17.51 | 161.11 | 1.38 | 183.15 | 0.4208 | 1024.6 | 791.5 | |
| 1.52 | -5.00 | 0.83 | -5.00 | -17.91 | 160.98 | 1.26 | 182.82 | 0.4270 | 779.7 | 999999 | |
| 4.55 | -5.00 | 2.49 | -5.00 | -17.67 | 160.92 | 1.19 | 182.70 | 0.4233 | 1048.2 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.03 | -18.11 | 160.92 | 1.20 | 182.66 | 0.4302 | 387.0 | 425.5 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -17.21 | 160.76 | 1.03 | 182.39 | 0.4157 | 993.0 | 781.5 | |
| 5.80 | -5.00 | 3.17 | -5.00 | -17.67 | 160.57 | 0.85 | 181.91 | 0.4230 | 995.3 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -17.50 | 160.16 | 0.43 | 180.99 | 0.4202 | 724.0 | 616.6 | |
| 0.00 | 2.41 | 0.00 | 1.31 | -17.27 | 159.87 | 0.15 | 180.34 | 0.4164 | 846.0 | 655.0 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -19.11 | 158.72 | -1.00 | 177.86 | 0.4458 | 752.0 | 559.4 | |
| 0.00 | 3.13 | 0.00 | 1.71 | -18.04 | 158.54 | -1.19 | 177.36 | 0.4290 | 569.0 | 401.6 | |
| 0.98 | 12.50 | 0.55 | 6.94 | -19.66 | 157.14 | -2.58 | 174.64 | 0.4560 | -782.5 | -802.6 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -19.05 | 157.02 | -2.70 | 174.26 | 0.4467 | -875.0 | -738.7 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -18.88 | 156.74 | -2.98 | 173.61 | 0.4445 | -950.0 | -824.5 | |
| 0.00 | 2.05 | 0.00 | 1.14 | -19.08 | 156.70 | -3.02 | 173.59 | 0.4478 | -940.0 | -821.3 | |
| 0.00 | 3.39 | 0.00 | 1.87 | -18.51 | 156.55 | -3.17 | 173.12 | 0.4391 | -964.0 | -846.2 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -19.39 | 156.44 | -3.28 | 173.12 | 0.4530 | -560.0 | -500.8 | |
| 0.00 | 2.41 | 0.00 | 1.33 | -18.68 | 156.36 | -3.36 | 172.75 | 0.4421 | -844.0 | -673.3 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -19.33 | 155.96 | -3.76 | 172.11 | 0.4529 | -622.0 | -425.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
