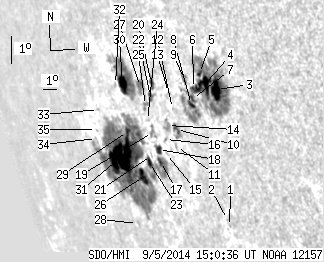

SDO HMI 2014-09-05 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.62 | 635.48 | 167.51 | 841.30 | -13.73 | 94.50 | -65.22 | 108.02 | 0.9276 | -30.7 | -70.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.61 | -16.22 | 99.09 | -60.64 | 111.90 | 0.9037 | -456.0 | -396.0 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -15.99 | 99.08 | -60.65 | 111.65 | 0.9033 | -157.0 | -146.0 | |
| 13.93 | 171.79 | 14.76 | 185.92 | -11.71 | 100.25 | -59.47 | 107.37 | 0.8857 | 778.9 | 231.4 | |
| 15.27 | -3.00 | 16.57 | -3.00 | -11.67 | 99.46 | -60.26 | 107.11 | 0.8916 | 473.8 | 999999 | |
| 1.96 | -3.00 | 2.13 | -3.00 | -11.30 | 99.34 | -60.38 | 106.68 | 0.8918 | 299.6 | 999999 | |
| 0.27 | -3.00 | 0.30 | -3.00 | -11.84 | 98.76 | -60.96 | 107.11 | 0.8972 | 309.0 | 999999 | |
| 2.23 | -3.00 | 2.51 | -3.00 | -12.18 | 98.56 | -61.16 | 107.42 | 0.8992 | 465.6 | 999999 | |
| 2.77 | -3.00 | 3.13 | -3.00 | -12.39 | 98.41 | -61.31 | 107.60 | 0.9007 | 378.0 | 999999 | |
| 0.00 | 4.55 | 0.00 | 5.14 | -11.61 | 98.26 | -61.46 | 106.73 | 0.9003 | 499.0 | 328.0 | |
| 2.68 | 7.86 | 3.21 | 9.43 | -13.34 | 96.99 | -62.73 | 108.24 | 0.9124 | 558.5 | 442.1 | |
| 0.00 | 1.34 | 0.00 | 1.63 | -13.92 | 96.72 | -63.01 | 108.78 | 0.9152 | 446.0 | 390.2 | |
| 0.00 | 0.36 | 0.00 | 0.43 | -12.67 | 97.03 | -62.70 | 107.54 | 0.9109 | 94.0 | 60.0 | |
| 0.00 | 1.07 | 0.00 | 1.27 | -12.17 | 96.97 | -62.75 | 106.99 | 0.9104 | 209.0 | 110.9 | |
| 0.00 | 6.88 | 0.00 | 8.43 | -13.28 | 96.40 | -63.32 | 108.02 | 0.9162 | -424.0 | -393.8 | |
| 0.00 | 0.98 | 0.00 | 1.24 | -14.24 | 95.85 | -63.88 | 108.89 | 0.9214 | 485.0 | 418.7 | |
| 0.00 | 1.96 | 0.00 | 2.45 | -13.77 | 96.02 | -63.71 | 108.44 | 0.9196 | -89.0 | -41.0 | |
| 2.68 | 340.38 | 3.47 | 495.45 | -14.57 | 95.24 | -64.49 | 109.07 | 0.9258 | 501.9 | -157.4 | |
| 3.48 | 5.71 | 4.48 | 7.36 | -14.18 | 95.30 | -64.42 | 108.68 | 0.9248 | 441.1 | 278.3 | |
| 0.00 | 6.61 | 0.00 | 8.51 | -13.65 | 95.14 | -64.58 | 108.09 | 0.9249 | -392.0 | -311.5 | |
| 2.41 | 5.98 | 2.97 | 7.37 | -12.02 | 95.86 | -63.87 | 106.54 | 0.9177 | 386.1 | 225.5 | |
| 0.00 | 0.89 | 0.00 | 1.19 | -14.45 | 94.64 | -65.08 | 108.79 | 0.9293 | 261.0 | 202.1 | |
| 2.41 | 4.29 | 3.02 | 5.36 | -12.46 | 95.59 | -64.14 | 106.94 | 0.9202 | 288.1 | 214.1 | |
| 3.93 | -17.00 | 5.29 | -17.00 | -14.71 | 94.34 | -65.38 | 108.99 | 0.9315 | 304.5 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.38 | -13.29 | 94.96 | -64.76 | 107.66 | 0.9255 | -370.0 | -379.5 | |
| 0.00 | 3.84 | 0.00 | 4.93 | -12.80 | 95.06 | -64.66 | 107.17 | 0.9241 | 41.0 | -68.2 | |
| 9.29 | -17.00 | 13.04 | -17.00 | -15.25 | 93.55 | -66.18 | 109.35 | 0.9369 | 291.4 | 999999 | |
| 0.00 | 9.55 | 0.00 | 12.23 | -12.21 | 94.98 | -64.75 | 106.53 | 0.9237 | -157.0 | -111.6 | |
| 0.00 | 0.45 | 0.00 | 0.69 | -16.97 | 91.87 | -67.85 | 110.71 | 0.9485 | -137.0 | -137.8 | |
| 2.86 | -17.00 | 4.01 | -17.00 | -13.86 | 93.13 | -66.60 | 107.81 | 0.9374 | -669.3 | 999999 | |
| 11.61 | 55.27 | 15.73 | 74.20 | -12.31 | 93.57 | -66.15 | 106.30 | 0.9326 | -429.6 | -334.4 | |
| 48.84 | -17.00 | 72.89 | -17.00 | -14.78 | 92.07 | -67.65 | 108.51 | 0.9445 | -438.6 | 999999 | |
| 0.00 | 1.88 | 0.00 | 2.61 | -12.38 | 92.99 | -66.73 | 106.24 | 0.9361 | 373.0 | 296.8 | |
| 0.00 | 0.27 | 0.00 | 0.41 | -13.41 | 90.99 | -68.73 | 106.85 | 0.9485 | -249.0 | -277.0 | |
| 0.00 | 0.98 | 0.00 | 1.60 | -14.44 | 90.13 | -69.59 | 107.71 | 0.9541 | 66.0 | 119.5 | |
| 0.00 | 0.71 | 0.00 | 1.15 | -14.13 | 90.35 | -69.37 | 107.44 | 0.9527 | -61.0 | -29.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
