SDO HMI 2014-09-05 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.59 | 378.86 | 100.69 | 598.37 | 14.75 | 86.68 | -73.04 | 76.78 | 0.9512 | 2.1 | -141.9 | |
|
previous
or next observation for the same group /

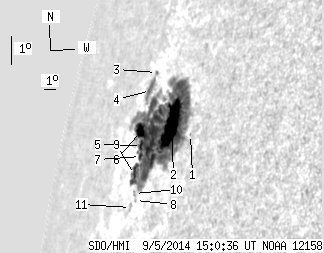

back to the solar disc SDO HMI 2014-09-05 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.37 | 15.13 | 89.79 | -69.94 | 76.53 | 0.9340 | 331.0 | 327.7 | |
| 39.11 | 358.68 | 58.57 | 563.65 | 15.22 | 87.87 | -71.85 | 76.36 | 0.9450 | 341.1 | -133.3 | |
| 0.36 | 1.34 | 0.62 | 2.31 | 16.51 | 84.98 | -74.75 | 74.87 | 0.9595 | -86.5 | -32.7 | |
| 0.00 | 12.59 | 0.00 | 22.04 | 15.93 | 84.87 | -74.85 | 75.47 | 0.9601 | -381.0 | -361.3 | |
| 3.04 | -2.00 | 5.18 | -2.00 | 14.27 | 85.43 | -74.30 | 77.23 | 0.9579 | -535.7 | 999999 | |
| 10.09 | -2.00 | 17.62 | -2.00 | 14.65 | 84.95 | -74.77 | 76.80 | 0.9601 | -512.9 | 999999 | |
| 1.70 | -2.00 | 2.86 | -2.00 | 13.95 | 85.60 | -74.12 | 77.57 | 0.9572 | -510.8 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.76 | 12.64 | 86.11 | -73.61 | 78.97 | 0.9551 | -296.0 | -259.4 | |
| 9.29 | -2.00 | 15.84 | -2.00 | 13.36 | 85.41 | -74.32 | 78.17 | 0.9583 | -370.0 | 999999 | |
| 0.00 | 1.96 | 0.00 | 3.28 | 12.83 | 85.85 | -73.87 | 78.76 | 0.9563 | -396.0 | -324.0 | |
| 0.00 | 2.95 | 0.00 | 4.96 | 12.38 | 85.75 | -73.98 | 79.22 | 0.9570 | 171.0 | 117.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
