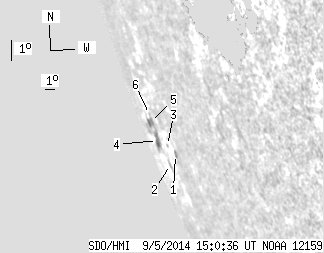

SDO HMI 2014-09-05 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.34 | 23.30 | 29.42 | 104.07 | -20.48 | 79.51 | -80.21 | 111.69 | 0.9939 | -335.5 | -218.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.32 | 0.00 | 7.36 | -20.69 | 82.13 | -77.59 | 112.36 | 0.9886 | 267.0 | 176.8 | |
| 0.00 | 2.50 | 0.00 | 10.24 | -21.27 | 80.16 | -79.56 | 112.58 | 0.9931 | 16.0 | -30.2 | |
| 0.00 | 1.07 | 0.00 | 3.78 | -20.52 | 81.17 | -78.55 | 112.01 | 0.9907 | -64.0 | -69.4 | |
| 3.75 | 17.14 | 17.34 | 81.56 | -20.61 | 79.15 | -80.57 | 111.76 | 0.9947 | -487.5 | -320.1 | |
| 2.59 | -4.00 | 12.08 | -4.00 | -20.03 | 79.07 | -80.65 | 111.17 | 0.9946 | -223.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 1.13 | -19.70 | 79.60 | -80.13 | 110.93 | 0.9936 | -283.0 | -275.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
