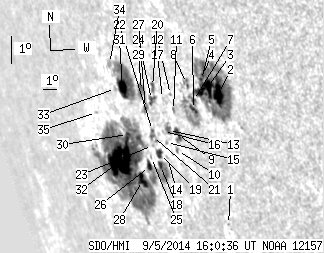

SDO HMI 2014-09-05 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.37 | 655.90 | 165.32 | 846.56 | -13.72 | 94.52 | -64.65 | 108.15 | 0.9240 | -40.3 | -70.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.70 | -16.03 | 99.03 | -60.14 | 111.85 | 0.8999 | -180.0 | -131.7 | |
| 13.48 | 149.81 | 14.05 | 157.13 | -11.71 | 100.25 | -58.92 | 107.53 | 0.8814 | 805.7 | 307.7 | |
| 15.80 | -2.00 | 16.82 | -2.00 | -11.63 | 99.55 | -59.62 | 107.24 | 0.8867 | 506.9 | 999999 | |
| 0.98 | -2.00 | 1.04 | -2.00 | -11.23 | 99.45 | -59.73 | 106.78 | 0.8867 | 430.7 | 999999 | |
| 0.98 | -2.00 | 1.05 | -2.00 | -11.37 | 99.34 | -59.84 | 106.90 | 0.8878 | 187.8 | 999999 | |
| 3.12 | 33.21 | 3.46 | 37.07 | -12.42 | 98.44 | -60.73 | 107.79 | 0.8966 | 414.1 | -1.9 | |
| 0.89 | -6.00 | 0.98 | -6.00 | -12.12 | 98.56 | -60.61 | 107.50 | 0.8951 | 469.1 | 999999 | |
| 0.00 | 4.46 | 0.00 | 4.94 | -11.61 | 98.30 | -60.87 | 106.88 | 0.8960 | 608.0 | 336.7 | |
| 4.29 | 7.59 | 5.04 | 8.93 | -13.38 | 96.98 | -62.19 | 108.42 | 0.9088 | 522.2 | 408.5 | |
| 0.36 | 2.05 | 0.43 | 2.45 | -13.91 | 96.73 | -62.45 | 108.93 | 0.9115 | 392.0 | 336.8 | |
| 0.00 | 1.87 | 0.00 | 2.18 | -12.60 | 97.05 | -62.12 | 107.62 | 0.9068 | 182.0 | 93.6 | |
| 0.00 | 0.89 | 0.00 | 1.03 | -12.10 | 97.07 | -62.10 | 107.08 | 0.9058 | 165.0 | 125.2 | |
| 2.05 | 5.45 | 2.46 | 6.54 | -13.32 | 96.40 | -62.77 | 108.20 | 0.9126 | -453.6 | -378.0 | |
| 0.00 | 0.80 | 0.00 | 0.99 | -14.24 | 95.88 | -63.30 | 109.04 | 0.9177 | 487.0 | 448.0 | |
| 0.00 | 1.16 | 0.00 | 1.42 | -13.74 | 96.06 | -63.11 | 108.56 | 0.9156 | -234.0 | -179.7 | |
| 0.00 | 0.27 | 0.00 | 0.33 | -13.39 | 96.02 | -63.16 | 108.18 | 0.9153 | -461.0 | -522.0 | |
| 0.00 | 0.62 | 0.00 | 0.74 | -12.29 | 96.45 | -62.73 | 107.13 | 0.9105 | -385.0 | -336.6 | |
| 2.95 | 350.95 | 3.74 | 498.08 | -14.57 | 95.20 | -63.97 | 109.21 | 0.9226 | 481.4 | -167.8 | |
| 3.75 | 5.45 | 4.73 | 6.86 | -14.17 | 95.34 | -63.83 | 108.83 | 0.9210 | 450.3 | 327.8 | |
| 1.52 | 10.00 | 1.83 | 12.17 | -11.98 | 95.89 | -63.28 | 106.65 | 0.9137 | 438.7 | 247.5 | |
| 0.98 | 7.14 | 1.24 | 9.00 | -13.66 | 95.11 | -64.06 | 108.22 | 0.9217 | -449.3 | -309.1 | |
| 0.80 | -21.00 | 1.01 | -21.00 | -13.45 | 95.21 | -63.96 | 108.04 | 0.9207 | -605.9 | 999999 | |
| 0.00 | 0.98 | 0.00 | 1.25 | -13.96 | 94.95 | -64.22 | 108.50 | 0.9232 | -120.0 | -162.3 | |
| 2.86 | -20.00 | 3.50 | -20.00 | -12.42 | 95.63 | -63.54 | 107.05 | 0.9162 | 311.8 | 999999 | |
| 0.00 | 0.89 | 0.00 | 1.16 | -14.38 | 94.65 | -64.52 | 108.87 | 0.9257 | 231.0 | 209.7 | |
| 4.02 | -18.00 | 5.29 | -18.00 | -14.71 | 94.32 | -64.85 | 109.12 | 0.9283 | 290.2 | 999999 | |
| 0.98 | 4.29 | 1.23 | 5.38 | -12.77 | 95.04 | -64.13 | 107.27 | 0.9206 | 17.7 | -78.1 | |
| 8.12 | -18.00 | 11.15 | -18.00 | -15.26 | 93.47 | -65.70 | 109.48 | 0.9342 | 280.3 | 999999 | |
| 0.00 | 8.48 | 0.00 | 10.62 | -12.21 | 95.02 | -64.15 | 106.67 | 0.9199 | -60.0 | -96.6 | |
| 1.61 | -18.00 | 2.20 | -18.00 | -13.82 | 93.16 | -66.01 | 107.91 | 0.9339 | -712.4 | 999999 | |
| 12.23 | 53.03 | 16.21 | 69.48 | -12.31 | 93.57 | -65.60 | 106.43 | 0.9292 | -450.4 | -376.0 | |
| 46.60 | -18.00 | 67.86 | -18.00 | -14.79 | 92.02 | -67.15 | 108.63 | 0.9418 | -480.8 | 999999 | |
| 0.00 | 1.61 | 0.00 | 2.18 | -12.38 | 93.00 | -66.17 | 106.36 | 0.9328 | 395.0 | 307.7 | |
| 0.00 | 3.48 | 0.00 | 4.72 | -11.60 | 92.92 | -66.25 | 105.53 | 0.9322 | 130.0 | 72.0 | |
| 0.00 | 0.80 | 0.00 | 1.21 | -13.39 | 90.90 | -68.27 | 106.93 | 0.9461 | -322.0 | -291.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
