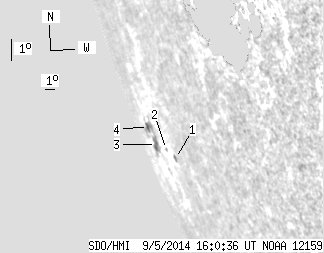

SDO HMI 2014-09-05 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.71 | 19.82 | 24.79 | 81.84 | -20.37 | 79.39 | -79.78 | 111.66 | 0.9931 | -340.7 | -299.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 16:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 5.10 | -20.67 | 82.23 | -76.94 | 112.47 | 0.9870 | 188.0 | 125.4 | |
| 0.00 | 1.07 | 0.00 | 3.58 | -20.52 | 81.14 | -78.03 | 112.10 | 0.9896 | -109.0 | -97.9 | |
| 3.21 | 17.05 | 13.74 | 73.16 | -20.59 | 79.26 | -79.91 | 111.85 | 0.9935 | -492.1 | -359.2 | |
| 2.50 | -3.00 | 11.05 | -3.00 | -20.04 | 78.92 | -80.25 | 111.25 | 0.9939 | -221.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
