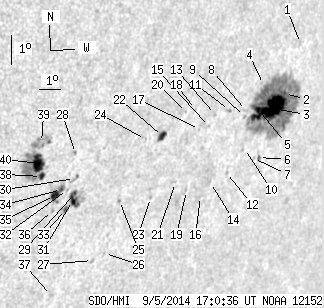

SDO HMI 2014-09-05 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.83 | 362.42 | 62.79 | 301.72 | -14.62 | 207.58 | 48.96 | 245.47 | 0.8023 | 148.6 | 25.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.66 | -12.21 | 211.43 | 52.81 | 249.94 | 0.8310 | -282.0 | -147.3 | |
| 0.71 | 219.24 | 0.64 | 193.84 | -13.77 | 211.07 | 52.46 | 248.03 | 0.8325 | 389.0 | 197.0 | |
| 37.31 | -2.00 | 32.88 | -2.00 | -14.20 | 210.55 | 51.93 | 247.34 | 0.8292 | 920.9 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.31 | -13.36 | 209.88 | 51.27 | 248.05 | 0.8204 | 427.0 | 447.8 | |
| 3.12 | -2.00 | 2.71 | -2.00 | -14.16 | 209.88 | 51.26 | 247.12 | 0.8230 | 992.7 | 999999 | |
| 0.71 | 2.32 | 0.64 | 2.07 | -15.77 | 210.42 | 51.80 | 245.51 | 0.8332 | 448.0 | 363.5 | |
| 0.00 | 0.54 | 0.00 | 0.47 | -15.77 | 210.17 | 51.55 | 245.40 | 0.8310 | 155.0 | 253.0 | |
| 0.00 | 2.14 | 0.00 | 1.83 | -14.13 | 209.27 | 50.65 | 246.92 | 0.8174 | 635.0 | 620.9 | |
| 0.00 | 1.25 | 0.00 | 1.07 | -14.32 | 209.23 | 50.61 | 246.68 | 0.8177 | 641.0 | 626.4 | |
| 0.00 | 0.62 | 0.00 | 0.54 | -15.39 | 209.58 | 50.96 | 245.60 | 0.8245 | 334.0 | 349.6 | |
| 0.00 | 1.61 | 0.00 | 1.35 | -14.04 | 208.41 | 49.79 | 246.67 | 0.8091 | 679.0 | 649.4 | |
| 0.00 | 1.43 | 0.00 | 1.23 | -16.10 | 208.93 | 50.31 | 244.52 | 0.8212 | 94.0 | 195.2 | |
| 0.00 | 1.07 | 0.00 | 0.89 | -14.11 | 207.76 | 49.14 | 246.32 | 0.8031 | 654.0 | 518.9 | |
| 0.00 | 0.80 | 0.00 | 0.68 | -16.35 | 208.23 | 49.61 | 243.93 | 0.8158 | 589.0 | 543.4 | |
| 0.00 | 0.45 | 0.00 | 0.37 | -14.47 | 207.58 | 48.96 | 245.81 | 0.8028 | 624.0 | 567.6 | |
| 0.00 | 0.98 | 0.00 | 0.83 | -16.78 | 207.89 | 49.27 | 243.29 | 0.8144 | 134.0 | 239.7 | |
| 0.00 | 0.62 | 0.00 | 0.51 | -14.53 | 207.12 | 48.50 | 245.55 | 0.7986 | 480.0 | 423.3 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -13.84 | 206.74 | 48.12 | 246.19 | 0.7924 | -244.0 | -312.3 | |
| 0.00 | 1.07 | 0.00 | 0.89 | -16.50 | 207.12 | 48.50 | 243.26 | 0.8063 | 539.0 | 453.9 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -13.90 | 206.33 | 47.71 | 245.94 | 0.7887 | -471.0 | -401.0 | |
| 0.00 | 0.98 | 0.00 | 0.81 | -16.18 | 206.49 | 47.87 | 243.34 | 0.7992 | -247.0 | -153.3 | |
| 4.37 | 6.61 | 3.46 | 5.23 | -14.58 | 205.41 | 46.79 | 244.71 | 0.7824 | -607.6 | -365.5 | |
| 0.00 | 1.34 | 0.00 | 1.08 | -16.57 | 205.45 | 46.83 | 242.40 | 0.7911 | -408.0 | -345.9 | |
| 0.00 | 0.80 | 0.00 | 0.63 | -14.61 | 204.64 | 46.03 | 244.32 | 0.7749 | 590.0 | 574.6 | |
| 0.00 | 1.16 | 0.00 | 0.91 | -16.53 | 204.02 | 45.40 | 241.74 | 0.7773 | -537.0 | -467.8 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -18.26 | 203.89 | 45.27 | 239.65 | 0.7841 | -297.0 | -325.7 | |
| 0.00 | 1.87 | 0.00 | 1.48 | -18.45 | 203.41 | 44.79 | 239.18 | 0.7805 | -475.0 | -426.0 | |
| 0.00 | 1.07 | 0.00 | 0.79 | -14.78 | 201.61 | 42.99 | 242.58 | 0.7451 | -628.0 | -541.5 | |
| 0.98 | 18.66 | 0.74 | 14.09 | -16.10 | 201.91 | 43.29 | 241.13 | 0.7546 | -606.7 | -189.7 | |
| 0.00 | 3.93 | 0.00 | 2.93 | -15.60 | 201.77 | 43.16 | 241.66 | 0.7508 | -500.0 | -415.4 | |
| 4.55 | -29.00 | 3.43 | -29.00 | -16.33 | 201.88 | 43.27 | 240.85 | 0.7554 | -746.8 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.87 | -15.94 | 201.56 | 42.94 | 241.14 | 0.7503 | -454.0 | -448.5 | |
| 1.34 | 4.73 | 1.01 | 3.55 | -16.60 | 201.66 | 43.04 | 240.39 | 0.7545 | -588.9 | -455.6 | |
| 0.89 | 12.94 | 0.66 | 9.60 | -15.92 | 201.30 | 42.68 | 241.02 | 0.7475 | -768.0 | -639.1 | |
| 5.53 | -34.00 | 4.10 | -34.00 | -16.09 | 201.04 | 42.42 | 240.67 | 0.7458 | -900.7 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.66 | -16.58 | 201.09 | 42.47 | 240.10 | 0.7488 | -576.0 | -492.4 | |
| 0.00 | 1.79 | 0.00 | 1.38 | -19.47 | 201.92 | 43.30 | 237.18 | 0.7718 | -58.0 | -120.0 | |
| 2.86 | 51.33 | 2.08 | 37.00 | -15.41 | 200.32 | 41.70 | 241.09 | 0.7349 | -645.1 | -554.4 | |
| 0.00 | 14.46 | 0.00 | 10.38 | -14.28 | 200.05 | 41.43 | 242.33 | 0.7264 | -740.0 | -544.9 | |
| 14.46 | -38.00 | 10.44 | -38.00 | -14.96 | 200.08 | 41.47 | 241.50 | 0.7302 | -902.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
