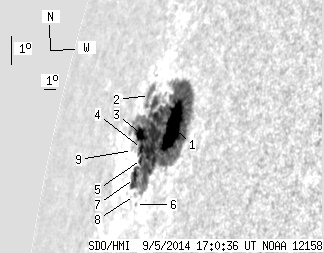

SDO HMI 2014-09-05 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.40 | 380.10 | 108.49 | 570.07 | 14.75 | 86.69 | -71.92 | 76.84 | 0.9453 | 11.0 | -163.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.17 | 365.19 | 64.44 | 545.65 | 15.21 | 87.79 | -70.82 | 76.41 | 0.9392 | 384.4 | -155.1 | |
| 0.00 | 11.25 | 0.00 | 18.52 | 15.86 | 84.81 | -73.81 | 75.59 | 0.9551 | -437.0 | -379.0 | |
| 10.53 | -1.00 | 17.24 | -1.00 | 14.66 | 85.03 | -73.59 | 76.86 | 0.9543 | -620.9 | 999999 | |
| 3.04 | -1.00 | 4.88 | -1.00 | 14.27 | 85.38 | -73.24 | 77.29 | 0.9527 | -581.4 | 999999 | |
| 3.04 | -1.00 | 4.83 | -1.00 | 13.95 | 85.64 | -72.98 | 77.63 | 0.9514 | -562.8 | 999999 | |
| 0.00 | 0.89 | 0.00 | 1.39 | 12.60 | 86.03 | -72.59 | 79.08 | 0.9497 | -339.0 | -261.5 | |
| 10.62 | -1.00 | 17.10 | -1.00 | 13.33 | 85.38 | -73.24 | 78.27 | 0.9529 | -376.3 | 999999 | |
| 0.00 | 1.52 | 0.00 | 2.40 | 12.85 | 85.75 | -72.87 | 78.80 | 0.9512 | -395.0 | -310.4 | |
| 0.00 | 1.25 | 0.00 | 2.11 | 14.10 | 84.50 | -74.11 | 77.42 | 0.9571 | 332.0 | 259.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
