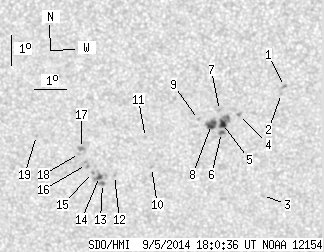

SDO HMI 2014-09-05 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.41 | 54.29 | 6.81 | 29.85 | -18.31 | 159.35 | 1.29 | 182.95 | 0.4350 | 262.6 | 79.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 0.97 | -16.47 | 162.94 | 4.88 | 191.48 | 0.4115 | 1005.0 | 773.7 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -16.70 | 162.86 | 4.79 | 191.16 | 0.4148 | 768.0 | 594.6 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -20.11 | 162.33 | 4.27 | 188.66 | 0.4663 | 625.0 | 470.2 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -17.38 | 161.54 | 3.47 | 187.91 | 0.4221 | 952.0 | 809.9 | |
| 4.11 | 10.35 | 2.25 | 5.66 | -17.67 | 161.00 | 2.94 | 186.62 | 0.4257 | 1078.4 | 915.2 | |
| 1.07 | 2.41 | 0.59 | 1.32 | -17.98 | 160.98 | 2.91 | 186.47 | 0.4303 | 776.9 | 661.3 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -17.24 | 160.90 | 2.84 | 186.51 | 0.4187 | 1016.0 | 815.9 | |
| 5.09 | 8.66 | 2.78 | 4.74 | -17.71 | 160.66 | 2.59 | 185.83 | 0.4256 | 1005.2 | 817.1 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -17.54 | 160.24 | 2.18 | 184.94 | 0.4223 | 836.0 | 670.4 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -19.14 | 158.76 | 0.69 | 181.47 | 0.4462 | 721.0 | 582.4 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.13 | 158.56 | 0.50 | 181.10 | 0.4303 | 719.0 | 575.1 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -19.41 | 157.57 | -0.49 | 178.96 | 0.4504 | -749.0 | -653.6 | |
| 0.62 | 9.91 | 0.35 | 5.50 | -19.68 | 157.18 | -0.88 | 178.17 | 0.4548 | -852.9 | -713.7 | |
| 1.52 | -13.00 | 0.84 | -13.00 | -19.44 | 157.09 | -0.98 | 177.95 | 0.4511 | -1042.9 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -19.31 | 156.87 | -1.20 | 177.47 | 0.4491 | -986.0 | -823.3 | |
| 0.00 | 2.95 | 0.00 | 1.63 | -19.04 | 156.68 | -1.39 | 177.04 | 0.4451 | -503.0 | -783.3 | |
| 0.00 | 3.21 | 0.00 | 1.77 | -18.50 | 156.52 | -1.54 | 176.64 | 0.4367 | -1003.0 | -839.2 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.67 | 156.46 | -1.61 | 176.52 | 0.4394 | -712.0 | -726.5 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.07 | 155.10 | -2.97 | 173.43 | 0.4319 | -613.0 | -507.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
