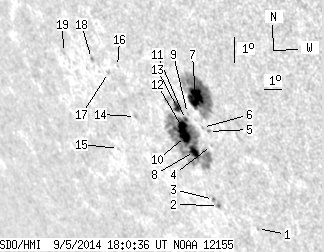

SDO HMI 2014-09-05 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.43 | 219.49 | 45.47 | 198.27 | -19.57 | 107.25 | -50.82 | 119.15 | 0.8383 | 640.5 | 294.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.72 | -22.99 | 109.16 | -48.90 | 123.75 | 0.8366 | -246.0 | -265.3 | |
| 0.54 | 2.41 | 0.50 | 2.23 | -22.37 | 107.48 | -50.58 | 122.29 | 0.8472 | 668.5 | 523.9 | |
| 0.00 | 1.70 | 0.00 | 1.57 | -22.18 | 107.32 | -50.75 | 122.01 | 0.8478 | 643.0 | 587.9 | |
| 0.00 | 0.71 | 0.00 | 0.64 | -20.27 | 108.12 | -49.94 | 120.31 | 0.8338 | 520.0 | 473.0 | |
| 0.00 | 1.34 | 0.00 | 1.19 | -19.80 | 108.18 | -49.89 | 119.82 | 0.8315 | 614.0 | 504.7 | |
| 0.00 | 1.07 | 0.00 | 0.95 | -19.69 | 107.92 | -50.14 | 119.58 | 0.8332 | 459.0 | 402.6 | |
| 18.92 | 80.33 | 16.66 | 70.38 | -18.68 | 108.00 | -50.07 | 118.50 | 0.8287 | 864.7 | 486.7 | |
| 7.41 | 117.47 | 6.79 | 107.72 | -20.58 | 107.12 | -50.95 | 120.19 | 0.8432 | 668.9 | 187.1 | |
| 0.00 | 0.71 | 0.00 | 0.64 | -19.28 | 107.34 | -50.72 | 118.87 | 0.8365 | 597.0 | 519.1 | |
| 9.19 | -8.00 | 8.43 | -8.00 | -20.10 | 106.88 | -51.19 | 119.56 | 0.8434 | 769.7 | 999999 | |
| 1.61 | -8.00 | 1.45 | -8.00 | -19.50 | 107.14 | -50.92 | 119.02 | 0.8390 | 694.3 | 999999 | |
| 8.21 | -8.00 | 7.51 | -8.00 | -19.80 | 106.86 | -51.21 | 119.22 | 0.8424 | 799.2 | 999999 | |
| 4.55 | 6.61 | 4.13 | 5.99 | -19.13 | 106.90 | -51.17 | 118.50 | 0.8396 | 671.0 | 460.1 | |
| 0.00 | 1.87 | 0.00 | 1.82 | -19.68 | 104.42 | -53.64 | 118.08 | 0.8614 | 603.0 | 446.9 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -20.93 | 102.82 | -55.24 | 118.77 | 0.8774 | -355.0 | -401.0 | |
| 0.00 | 0.45 | 0.00 | 0.43 | -18.05 | 104.22 | -53.85 | 116.22 | 0.8578 | -213.0 | -211.4 | |
| 0.00 | 1.52 | 0.00 | 1.48 | -18.31 | 103.60 | -54.46 | 116.26 | 0.8635 | -321.0 | -280.4 | |
| 0.00 | 1.61 | 0.00 | 1.59 | -17.93 | 102.84 | -55.23 | 115.56 | 0.8683 | -695.0 | -579.1 | |
| 0.00 | 0.62 | 0.00 | 0.65 | -17.91 | 101.24 | -56.82 | 114.96 | 0.8804 | -375.0 | -298.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
