SDO HMI 2014-09-05 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.08 | 393.90 | 100.85 | 574.98 | 14.84 | 86.69 | -71.38 | 76.77 | 0.9422 | 66.3 | -161.9 | |
|
previous
or next observation for the same group /

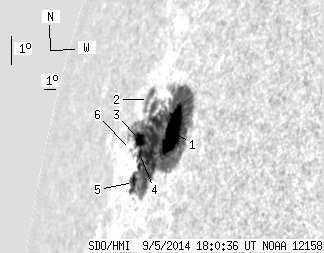

back to the solar disc SDO HMI 2014-09-05 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.45 | 381.32 | 61.90 | 554.79 | 15.24 | 87.79 | -70.28 | 76.40 | 0.9360 | 435.3 | -156.1 | |
| 0.00 | 11.51 | 0.00 | 18.42 | 15.89 | 84.79 | -73.27 | 75.58 | 0.9524 | -414.0 | -352.8 | |
| 12.05 | -1.00 | 19.20 | -1.00 | 14.66 | 84.93 | -73.14 | 76.89 | 0.9520 | -631.3 | 999999 | |
| 3.39 | -1.00 | 5.31 | -1.00 | 14.26 | 85.27 | -72.80 | 77.33 | 0.9503 | -592.3 | 999999 | |
| 9.19 | -1.00 | 14.44 | -1.00 | 13.36 | 85.34 | -72.73 | 78.27 | 0.9502 | -334.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.77 | 14.26 | 84.27 | -73.80 | 77.26 | 0.9555 | 383.0 | 332.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
