SDO HMI 2014-09-05 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.45 | 236.26 | 52.91 | 211.04 | -19.58 | 107.21 | -50.31 | 119.39 | 0.8341 | 665.9 | 273.6 | |
|
previous
or next observation for the same group /

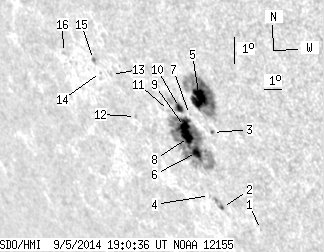

back to the solar disc SDO HMI 2014-09-05 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.24 | -23.00 | 109.16 | -48.35 | 124.04 | 0.8322 | -321.0 | -286.0 | |
| 0.98 | 6.87 | 0.90 | 6.30 | -22.40 | 107.54 | -49.98 | 122.62 | 0.8426 | 636.7 | 534.4 | |
| 0.62 | 1.61 | 0.55 | 1.41 | -19.80 | 108.23 | -49.28 | 120.10 | 0.8264 | 582.0 | 501.5 | |
| 0.00 | 0.62 | 0.00 | 0.58 | -22.04 | 107.05 | -50.47 | 122.00 | 0.8450 | 522.0 | 464.3 | |
| 23.30 | 81.85 | 20.24 | 70.83 | -18.68 | 108.05 | -49.47 | 118.78 | 0.8236 | 898.8 | 456.1 | |
| 7.41 | 125.49 | 6.71 | 113.60 | -20.59 | 107.08 | -50.43 | 120.43 | 0.8391 | 680.7 | 186.2 | |
| 0.00 | 0.62 | 0.00 | 0.55 | -19.29 | 107.30 | -50.21 | 119.11 | 0.8323 | 578.0 | 450.0 | |
| 9.82 | -6.00 | 8.88 | -6.00 | -20.10 | 106.89 | -50.62 | 119.82 | 0.8388 | 824.3 | 999999 | |
| 12.50 | -6.00 | 11.27 | -6.00 | -19.74 | 106.85 | -50.66 | 119.40 | 0.8377 | 753.2 | 999999 | |
| 4.37 | 11.07 | 3.92 | 9.93 | -19.10 | 106.87 | -50.64 | 118.71 | 0.8351 | 671.1 | 211.7 | |
| 0.00 | 1.25 | 0.00 | 1.14 | -19.27 | 106.24 | -51.27 | 118.61 | 0.8410 | -406.0 | -302.1 | |
| 0.00 | 1.79 | 0.00 | 1.71 | -19.67 | 104.32 | -53.19 | 118.24 | 0.8579 | 570.0 | 453.0 | |
| 0.00 | 1.07 | 0.00 | 1.03 | -18.34 | 103.64 | -53.87 | 116.53 | 0.8589 | -212.0 | -174.8 | |
| 0.00 | 0.98 | 0.00 | 0.96 | -18.34 | 103.04 | -54.47 | 116.30 | 0.8636 | -423.0 | -336.2 | |
| 0.45 | 1.61 | 0.44 | 1.57 | -17.94 | 102.85 | -54.67 | 115.78 | 0.8639 | -597.6 | -519.3 | |
| 0.00 | 1.16 | 0.00 | 1.19 | -17.89 | 101.18 | -56.34 | 115.11 | 0.8767 | -311.0 | -290.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
