SDO HMI 2014-09-05 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.10 | 685.74 | 154.42 | 830.25 | -13.72 | 94.50 | -63.01 | 108.58 | 0.9134 | -68.9 | -89.0 | |
|
previous
or next observation for the same group /

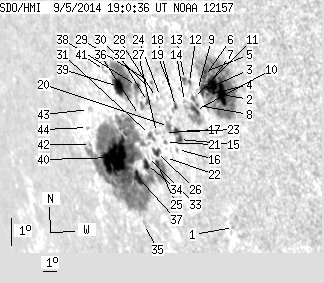

back to the solar disc SDO HMI 2014-09-05 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.95 | -16.14 | 99.25 | -58.26 | 112.56 | 0.8866 | -184.0 | -236.2 | |
| 13.39 | 159.95 | 13.25 | 159.03 | -11.77 | 100.29 | -57.22 | 108.11 | 0.8679 | 928.7 | 348.5 | |
| 12.94 | -2.00 | 12.99 | -2.00 | -11.57 | 99.78 | -57.73 | 107.73 | 0.8717 | 652.8 | 999999 | |
| 0.27 | -2.00 | 0.27 | -2.00 | -11.86 | 99.45 | -58.06 | 107.96 | 0.8750 | 442.3 | 999999 | |
| 1.34 | -2.00 | 1.35 | -2.00 | -11.12 | 99.58 | -57.93 | 107.17 | 0.8723 | 426.5 | 999999 | |
| 1.25 | -2.00 | 1.26 | -2.00 | -11.29 | 99.46 | -58.05 | 107.33 | 0.8736 | 331.4 | 999999 | |
| 1.43 | -2.00 | 1.46 | -2.00 | -11.83 | 99.17 | -58.35 | 107.84 | 0.8772 | 187.2 | 999999 | |
| 0.45 | 22.49 | 0.47 | 23.67 | -12.29 | 98.70 | -58.81 | 108.21 | 0.8818 | 608.6 | 151.2 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -11.80 | 98.88 | -58.63 | 107.72 | 0.8794 | 167.0 | 178.0 | |
| 4.11 | -8.00 | 4.31 | -8.00 | -12.47 | 98.52 | -59.00 | 108.35 | 0.8837 | 455.9 | 999999 | |
| 0.98 | -8.00 | 1.03 | -8.00 | -12.09 | 98.54 | -58.98 | 107.94 | 0.8827 | 342.7 | 999999 | |
| 0.71 | 5.44 | 0.74 | 5.71 | -11.59 | 98.47 | -59.04 | 107.37 | 0.8821 | 405.6 | 393.5 | |
| 1.07 | -12.00 | 1.13 | -12.00 | -11.53 | 98.19 | -59.32 | 107.22 | 0.8842 | 449.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.14 | -12.25 | 97.93 | -59.59 | 107.94 | 0.8877 | -288.0 | -235.0 | |
| 2.41 | 9.28 | 2.67 | 10.31 | -13.55 | 97.09 | -60.43 | 109.11 | 0.8966 | 629.0 | 368.0 | |
| 0.00 | 1.52 | 0.00 | 1.71 | -13.90 | 96.81 | -60.71 | 109.41 | 0.8994 | 371.0 | 367.3 | |
| 2.59 | -15.00 | 2.87 | -15.00 | -13.31 | 97.00 | -60.51 | 108.82 | 0.8968 | 517.1 | 999999 | |
| 1.16 | 4.28 | 1.27 | 4.69 | -12.48 | 97.28 | -60.24 | 108.01 | 0.8931 | 334.3 | 142.3 | |
| 0.00 | 0.89 | 0.00 | 0.97 | -11.98 | 97.22 | -60.29 | 107.45 | 0.8925 | 153.0 | 183.2 | |
| 0.00 | 5.27 | 0.00 | 5.93 | -13.20 | 96.53 | -60.98 | 108.57 | 0.8999 | -449.0 | -361.3 | |
| 0.00 | 1.79 | 0.00 | 2.05 | -13.76 | 96.09 | -61.42 | 109.05 | 0.9042 | -315.0 | -190.6 | |
| 0.00 | 0.98 | 0.00 | 1.14 | -14.27 | 95.85 | -61.66 | 109.53 | 0.9068 | 499.0 | 385.0 | |
| 0.00 | 0.98 | 0.00 | 1.12 | -13.43 | 96.17 | -61.34 | 108.72 | 0.9030 | -612.0 | -538.2 | |
| 0.00 | 0.36 | 0.00 | 0.40 | -12.26 | 96.41 | -61.10 | 107.53 | 0.8990 | -304.0 | -297.8 | |
| 2.59 | 374.61 | 3.09 | 494.41 | -14.54 | 95.19 | -62.33 | 109.62 | 0.9119 | 501.1 | -206.6 | |
| 3.48 | 5.62 | 4.13 | 6.67 | -14.17 | 95.30 | -62.21 | 109.27 | 0.9104 | 509.5 | 314.8 | |
| 0.00 | 1.96 | 0.00 | 2.29 | -13.50 | 95.62 | -61.90 | 108.64 | 0.9070 | -590.0 | -568.8 | |
| 0.00 | 0.80 | 0.00 | 0.91 | -12.33 | 96.12 | -61.39 | 107.52 | 0.9012 | 219.0 | 38.1 | |
| 0.00 | 1.07 | 0.00 | 1.22 | -11.88 | 95.91 | -61.60 | 106.98 | 0.9019 | 347.0 | 324.7 | |
| 0.00 | 0.80 | 0.00 | 0.92 | -12.11 | 95.82 | -61.69 | 107.20 | 0.9030 | 560.0 | 489.4 | |
| 1.07 | 5.36 | 1.27 | 6.36 | -13.62 | 95.09 | -62.42 | 108.62 | 0.9108 | -555.6 | -216.4 | |
| 1.34 | 7.41 | 1.55 | 8.65 | -12.53 | 95.44 | -62.07 | 107.56 | 0.9064 | 171.1 | 22.6 | |
| 0.00 | 1.34 | 0.00 | 1.63 | -14.38 | 94.58 | -62.93 | 109.29 | 0.9156 | 168.0 | 182.9 | |
| 4.02 | -25.00 | 4.96 | -25.00 | -14.66 | 94.36 | -63.15 | 109.53 | 0.9175 | 401.4 | 999999 | |
| 0.00 | 2.32 | 0.00 | 3.08 | -16.76 | 93.00 | -64.51 | 111.36 | 0.9297 | -391.0 | -261.2 | |
| 0.00 | 0.27 | 0.00 | 0.32 | -13.07 | 94.67 | -62.85 | 107.92 | 0.9127 | -264.0 | -252.7 | |
| 7.23 | -25.00 | 9.27 | -25.00 | -15.18 | 93.51 | -64.00 | 109.85 | 0.9238 | 353.0 | 999999 | |
| 2.77 | 10.89 | 3.26 | 12.90 | -12.09 | 94.89 | -62.62 | 106.94 | 0.9094 | -156.6 | -115.6 | |
| 12.14 | 51.77 | 15.07 | 63.53 | -12.27 | 93.56 | -63.95 | 106.79 | 0.9187 | -575.4 | -438.2 | |
| 49.36 | -25.00 | 66.75 | -25.00 | -14.71 | 92.08 | -65.43 | 108.98 | 0.9318 | -606.1 | 999999 | |
| 0.00 | 3.03 | 0.00 | 3.88 | -11.86 | 92.74 | -64.78 | 106.16 | 0.9234 | -30.0 | -98.8 | |
| 0.00 | 1.16 | 0.00 | 1.70 | -14.51 | 90.23 | -67.28 | 108.32 | 0.9421 | 55.0 | 137.6 | |
| 0.00 | 0.62 | 0.00 | 0.88 | -13.33 | 90.77 | -66.74 | 107.23 | 0.9375 | -216.0 | -210.4 | |
| 0.00 | 1.25 | 0.00 | 1.80 | -13.96 | 90.33 | -67.18 | 107.77 | 0.9408 | -182.0 | -150.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
