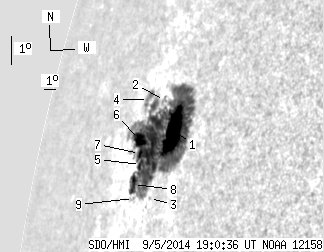

SDO HMI 2014-09-05 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.43 | 403.70 | 106.43 | 574.82 | 14.83 | 86.61 | -70.91 | 76.81 | 0.9395 | 12.6 | -153.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.72 | 389.07 | 60.82 | 552.55 | 15.28 | 87.78 | -69.73 | 76.38 | 0.9327 | 477.2 | -146.0 | |
| 0.00 | 3.03 | 0.00 | 4.40 | 16.05 | 86.32 | -71.20 | 75.51 | 0.9411 | -161.0 | -112.3 | |
| 0.00 | 0.89 | 0.00 | 1.25 | 13.08 | 87.10 | -70.42 | 78.70 | 0.9374 | -385.0 | -342.5 | |
| 0.00 | 9.82 | 0.00 | 15.28 | 15.90 | 84.80 | -72.72 | 75.60 | 0.9495 | -438.0 | -356.4 | |
| 3.39 | -1.00 | 5.10 | -1.00 | 13.96 | 85.59 | -71.92 | 77.69 | 0.9457 | -630.4 | 999999 | |
| 13.83 | -1.00 | 21.45 | -1.00 | 14.66 | 84.93 | -72.59 | 76.91 | 0.9491 | -661.6 | 999999 | |
| 4.37 | -1.00 | 6.67 | -1.00 | 14.26 | 85.25 | -72.26 | 77.35 | 0.9475 | -624.6 | 999999 | |
| 8.12 | -1.00 | 12.39 | -1.00 | 13.31 | 85.37 | -72.15 | 78.36 | 0.9471 | -378.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 1.34 | 12.91 | 85.66 | -71.86 | 78.80 | 0.9457 | -395.0 | -349.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
