SDO HMI 2014-09-05 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.15 | 21.61 | 3.14 | 11.02 | 8.60 | 143.42 | -14.10 | 83.50 | 0.2434 | 161.9 | 183.9 | |
|
previous
or next observation for the same group /

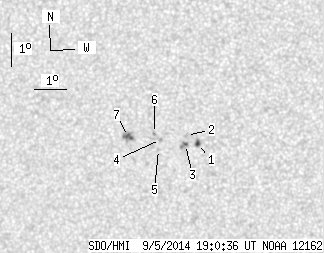

back to the solar disc SDO HMI 2014-09-05 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.96 | 3.21 | 1.00 | 1.63 | 8.52 | 144.63 | -12.88 | 83.43 | 0.2229 | -1061.8 | -805.6 | |
| 0.00 | 1.70 | 0.00 | 0.86 | 8.75 | 144.28 | -13.23 | 82.54 | 0.2292 | -736.0 | -607.4 | |
| 0.89 | 4.02 | 0.45 | 2.04 | 8.48 | 144.26 | -13.26 | 83.74 | 0.2292 | -853.2 | -698.0 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 8.61 | 143.47 | -14.05 | 83.45 | 0.2426 | 1052.0 | 846.9 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 8.30 | 143.41 | -14.10 | 84.72 | 0.2431 | 720.0 | 514.5 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 8.78 | 143.27 | -14.24 | 82.80 | 0.2462 | 714.0 | 621.6 | |
| 3.30 | 8.84 | 1.69 | 4.53 | 8.67 | 142.45 | -15.06 | 83.53 | 0.2596 | 1104.8 | 812.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
