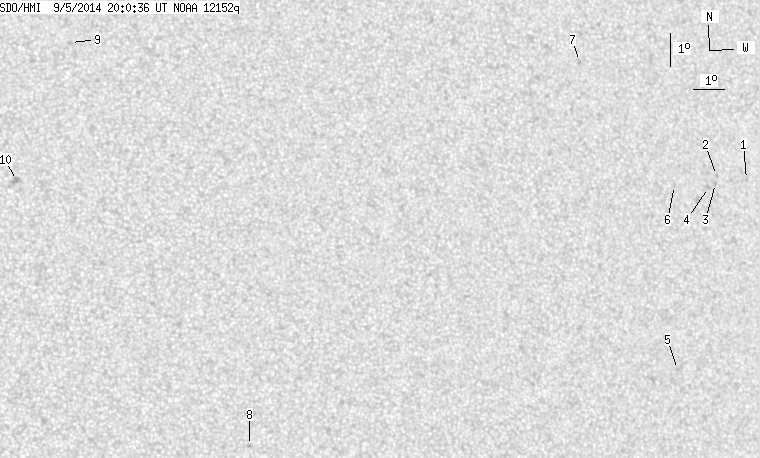

SDO HMI 2014-09-05 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.61 | 0.00 | 11.05 | 11.30 | 176.82 | 19.86 | 288.14 | 0.3486 | -243.9 | 15.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.72 | 11.00 | 188.37 | 31.41 | 279.28 | 0.5204 | -779.0 | -599.5 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 11.19 | 187.31 | 30.35 | 279.81 | 0.5051 | -738.0 | -598.1 | |
| 0.00 | 1.52 | 0.00 | 0.87 | 10.95 | 187.25 | 30.29 | 279.35 | 0.5038 | -748.0 | -613.9 | |
| 0.00 | 1.96 | 0.00 | 1.12 | 10.84 | 186.99 | 30.03 | 279.18 | 0.4998 | -652.0 | -631.4 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 5.42 | 185.46 | 28.50 | 268.00 | 0.4772 | -666.0 | -505.7 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 10.98 | 185.80 | 28.84 | 279.64 | 0.4822 | -727.0 | -630.9 | |
| 0.00 | 2.59 | 0.00 | 1.43 | 14.92 | 182.95 | 25.99 | 289.01 | 0.4497 | -714.0 | -506.3 | |
| 0.00 | 1.87 | 0.00 | 0.96 | 3.78 | 171.42 | 14.46 | 257.25 | 0.2565 | 860.0 | 667.0 | |
| 0.00 | 2.05 | 0.00 | 1.04 | 16.14 | 166.24 | 9.28 | 315.22 | 0.2210 | 730.0 | 627.6 | |
| 0.00 | 6.16 | 0.00 | 3.09 | 11.97 | 164.38 | 7.42 | 303.44 | 0.1522 | 995.0 | 753.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
