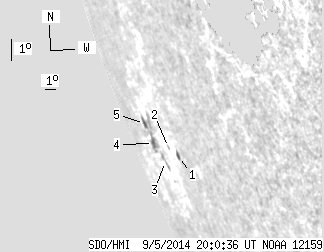

SDO HMI 2014-09-05 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.25 | 29.98 | 20.12 | 94.82 | -20.57 | 79.21 | -77.75 | 112.22 | 0.9888 | -335.1 | -324.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.25 | 3.12 | 3.07 | 7.69 | -20.68 | 82.32 | -74.64 | 112.93 | 0.9804 | 185.5 | 177.3 | |
| 0.00 | 1.25 | 0.00 | 3.34 | -20.51 | 81.28 | -75.68 | 112.55 | 0.9835 | -8.0 | 0.7 | |
| 0.00 | 4.55 | 0.00 | 14.09 | -21.16 | 79.81 | -77.15 | 112.91 | 0.9878 | -301.0 | -244.4 | |
| 2.95 | 21.06 | 9.94 | 69.70 | -20.70 | 78.78 | -78.18 | 112.26 | 0.9900 | -639.5 | -411.0 | |
| 2.05 | -4.00 | 7.11 | -4.00 | -20.08 | 78.46 | -78.50 | 111.59 | 0.9905 | -185.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
