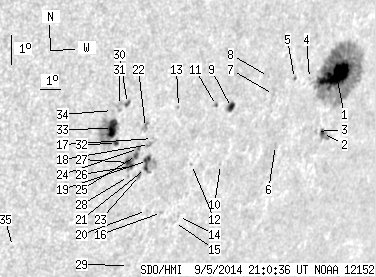

SDO HMI 2014-09-05 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.24 | 330.32 | 61.10 | 289.62 | -14.68 | 207.68 | 51.27 | 246.37 | 0.8237 | 78.4 | 41.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.88 | 201.10 | 33.33 | 187.59 | -14.22 | 210.48 | 54.07 | 248.10 | 0.8480 | 864.4 | 230.9 | |
| 2.77 | 8.57 | 2.61 | 8.11 | -16.09 | 210.43 | 54.02 | 246.00 | 0.8532 | -22.9 | -367.4 | |
| 0.00 | 1.96 | 0.00 | 1.83 | -15.99 | 210.06 | 53.66 | 245.98 | 0.8498 | 492.0 | 368.2 | |
| 0.00 | 1.07 | 0.00 | 0.96 | -14.17 | 209.04 | 52.63 | 247.64 | 0.8354 | 493.0 | 468.3 | |
| 0.45 | 1.34 | 0.39 | 1.18 | -14.08 | 208.25 | 51.84 | 247.43 | 0.8280 | 607.8 | 572.2 | |
| 0.00 | 2.32 | 0.00 | 2.07 | -16.22 | 208.02 | 51.61 | 244.91 | 0.8331 | 115.0 | 191.0 | |
| 0.00 | 1.34 | 0.00 | 1.16 | -14.50 | 207.32 | 50.92 | 246.59 | 0.8211 | 447.0 | 404.8 | |
| 0.00 | 0.89 | 0.00 | 0.76 | -13.88 | 206.88 | 50.48 | 247.13 | 0.8149 | -272.0 | -223.8 | |
| 4.20 | 6.25 | 3.47 | 5.17 | -14.72 | 205.34 | 48.94 | 245.51 | 0.8036 | -419.4 | -273.3 | |
| 0.00 | 0.80 | 0.00 | 0.68 | -16.58 | 205.41 | 49.01 | 243.39 | 0.8113 | -384.0 | -259.1 | |
| 0.45 | 1.16 | 0.36 | 0.94 | -14.58 | 204.59 | 48.18 | 245.34 | 0.7959 | 596.0 | 556.6 | |
| 0.00 | 0.98 | 0.00 | 0.80 | -16.44 | 203.99 | 47.58 | 242.90 | 0.7976 | -490.0 | -381.1 | |
| 0.00 | 0.98 | 0.00 | 0.77 | -14.47 | 202.80 | 46.39 | 244.65 | 0.7781 | 490.0 | 389.5 | |
| 0.00 | 0.71 | 0.00 | 0.59 | -18.14 | 203.95 | 47.55 | 240.93 | 0.8044 | -403.0 | -338.5 | |
| 0.00 | 1.07 | 0.00 | 0.89 | -18.33 | 203.83 | 47.43 | 240.66 | 0.8041 | -381.0 | -332.3 | |
| 0.00 | 1.25 | 0.00 | 1.02 | -17.92 | 203.08 | 46.67 | 240.75 | 0.7955 | -483.0 | -423.8 | |
| 0.00 | 0.62 | 0.00 | 0.49 | -15.39 | 201.88 | 45.47 | 243.12 | 0.7729 | -234.0 | -220.6 | |
| 0.00 | 2.59 | 0.00 | 2.01 | -15.57 | 201.80 | 45.39 | 242.85 | 0.7730 | -388.0 | -378.3 | |
| 3.66 | 17.05 | 2.86 | 13.38 | -16.10 | 201.86 | 45.45 | 242.26 | 0.7759 | -586.7 | -102.0 | |
| 0.00 | 0.71 | 0.00 | 0.57 | -17.78 | 202.34 | 45.93 | 240.54 | 0.7881 | -540.0 | -512.5 | |
| 1.70 | -19.00 | 1.33 | -19.00 | -16.36 | 201.85 | 45.44 | 241.95 | 0.7769 | -639.4 | 999999 | |
| 0.00 | 4.91 | 0.00 | 3.77 | -14.99 | 201.46 | 45.05 | 243.38 | 0.7670 | -636.0 | -527.6 | |
| 0.00 | 3.12 | 0.00 | 2.44 | -16.57 | 201.64 | 45.23 | 241.59 | 0.7759 | -499.0 | -396.9 | |
| 0.62 | 17.05 | 0.48 | 13.14 | -15.66 | 201.33 | 44.92 | 242.51 | 0.7687 | -615.4 | -635.9 | |
| 1.87 | -24.00 | 1.45 | -24.00 | -15.88 | 201.30 | 44.90 | 242.23 | 0.7695 | -749.9 | 999999 | |
| 1.79 | -24.00 | 1.38 | -24.00 | -16.23 | 201.14 | 44.73 | 241.74 | 0.7694 | -741.7 | 999999 | |
| 3.39 | -24.00 | 2.61 | -24.00 | -16.08 | 201.01 | 44.60 | 241.84 | 0.7675 | -902.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.76 | -16.55 | 201.14 | 44.74 | 241.35 | 0.7710 | -594.0 | -516.5 | |
| 0.00 | 1.34 | 0.00 | 1.09 | -19.59 | 202.14 | 45.74 | 238.37 | 0.7946 | -454.0 | -316.9 | |
| 1.25 | 2.86 | 0.94 | 2.14 | -14.12 | 200.44 | 44.04 | 243.92 | 0.7528 | -628.4 | -495.4 | |
| 0.00 | 4.82 | 0.00 | 3.59 | -14.15 | 200.10 | 43.70 | 243.70 | 0.7495 | -513.0 | -523.9 | |
| 1.34 | 40.34 | 1.01 | 30.14 | -15.40 | 200.29 | 43.88 | 242.29 | 0.7572 | -662.2 | -567.1 | |
| 11.87 | -32.00 | 8.88 | -32.00 | -14.88 | 199.98 | 43.57 | 242.75 | 0.7516 | -891.1 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.80 | -14.29 | 199.83 | 43.43 | 243.40 | 0.7473 | -406.0 | -449.8 | |
| 0.00 | 1.07 | 0.00 | 0.78 | -18.46 | 196.69 | 40.28 | 236.54 | 0.7374 | -559.0 | -500.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
