SDO HMI 2014-09-05 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.28 | 231.35 | 42.84 | 201.35 | -19.60 | 107.25 | -49.15 | 119.95 | 0.8245 | 659.3 | 338.6 | |
|
previous
or next observation for the same group /

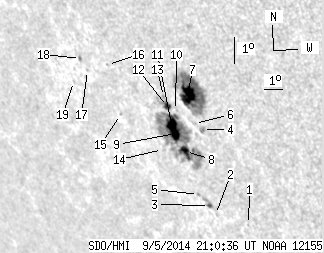

back to the solar disc SDO HMI 2014-09-05 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.54 | -22.92 | 109.17 | -47.24 | 124.53 | 0.8230 | -123.0 | -216.7 | |
| 0.00 | 0.62 | 0.00 | 0.56 | -22.73 | 107.63 | -48.78 | 123.55 | 0.8345 | 297.0 | 325.4 | |
| 1.16 | 5.89 | 1.04 | 5.27 | -22.44 | 107.47 | -48.93 | 123.15 | 0.8345 | 629.5 | 545.2 | |
| 0.00 | 3.39 | 0.00 | 2.89 | -19.78 | 108.30 | -48.11 | 120.65 | 0.8164 | 621.0 | 517.7 | |
| 0.00 | 1.43 | 0.00 | 1.28 | -22.10 | 107.08 | -49.33 | 122.60 | 0.8362 | 588.0 | 502.4 | |
| 0.00 | 1.34 | 0.00 | 1.15 | -19.61 | 107.98 | -48.43 | 120.30 | 0.8184 | 599.0 | 506.2 | |
| 18.92 | 83.37 | 16.05 | 70.44 | -18.64 | 108.03 | -48.38 | 119.24 | 0.8140 | 917.1 | 515.7 | |
| 7.41 | 118.45 | 6.55 | 104.61 | -20.64 | 107.10 | -49.30 | 121.02 | 0.8301 | 653.2 | 241.8 | |
| 8.84 | -8.00 | 7.80 | -8.00 | -20.06 | 106.86 | -49.55 | 120.27 | 0.8297 | 851.6 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.31 | -19.26 | 107.20 | -49.21 | 119.54 | 0.8237 | 474.0 | 532.2 | |
| 8.84 | -8.00 | 7.78 | -8.00 | -19.77 | 106.79 | -49.62 | 119.91 | 0.8292 | 878.0 | 999999 | |
| 3.66 | 9.02 | 3.20 | 7.90 | -19.16 | 106.84 | -49.56 | 119.26 | 0.8263 | 708.2 | 263.0 | |
| 0.00 | 0.98 | 0.00 | 0.86 | -18.83 | 106.78 | -49.63 | 118.87 | 0.8256 | 348.0 | 317.9 | |
| 0.00 | 0.80 | 0.00 | 0.73 | -20.69 | 105.92 | -50.49 | 120.53 | 0.8400 | -215.0 | -217.2 | |
| 0.00 | 0.71 | 0.00 | 0.67 | -19.70 | 104.21 | -52.20 | 118.69 | 0.8501 | 594.0 | 492.8 | |
| 0.00 | 0.98 | 0.00 | 0.90 | -18.03 | 104.27 | -52.14 | 116.89 | 0.8438 | -111.0 | -122.4 | |
| 0.00 | 0.80 | 0.00 | 0.76 | -18.35 | 103.07 | -53.34 | 116.76 | 0.8547 | -394.0 | -357.4 | |
| 0.45 | 1.70 | 0.42 | 1.61 | -17.98 | 102.86 | -53.55 | 116.27 | 0.8552 | -640.8 | -556.0 | |
| 0.00 | 0.89 | 0.00 | 0.87 | -18.82 | 102.09 | -54.32 | 116.88 | 0.8640 | -344.0 | -250.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
