SDO HMI 2014-09-05 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.02 | 688.11 | 151.55 | 801.55 | -13.70 | 94.54 | -61.86 | 108.88 | 0.9057 | -63.8 | -106.9 | |
|
previous
or next observation for the same group /

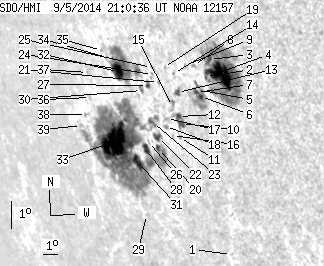

back to the solar disc SDO HMI 2014-09-05 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.58 | -17.63 | 98.25 | -58.16 | 114.20 | 0.8895 | -390.0 | -291.7 | |
| 31.51 | 157.63 | 30.39 | 151.79 | -11.63 | 100.13 | -56.27 | 108.25 | 0.8598 | 829.3 | 337.9 | |
| 2.41 | -2.00 | 2.35 | -2.00 | -11.22 | 99.59 | -56.82 | 107.62 | 0.8634 | 477.5 | 999999 | |
| 0.45 | -2.00 | 0.44 | -2.00 | -11.83 | 99.16 | -57.24 | 108.18 | 0.8683 | 84.8 | 999999 | |
| 0.62 | 27.05 | 0.63 | 27.51 | -12.29 | 98.78 | -57.63 | 108.56 | 0.8725 | 590.4 | 168.1 | |
| 1.43 | -5.00 | 1.45 | -5.00 | -12.49 | 98.65 | -57.76 | 108.75 | 0.8740 | 630.1 | 999999 | |
| 1.07 | -5.00 | 1.09 | -5.00 | -12.39 | 98.45 | -57.96 | 108.57 | 0.8754 | 398.2 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.62 | -11.52 | 98.57 | -57.84 | 107.65 | 0.8724 | 585.0 | 455.7 | |
| 0.00 | 1.16 | 0.00 | 1.19 | -11.58 | 98.02 | -58.39 | 107.55 | 0.8770 | 288.0 | 301.8 | |
| 3.21 | 12.05 | 3.44 | 12.92 | -13.52 | 97.11 | -59.29 | 109.41 | 0.8882 | 639.1 | 226.6 | |
| 0.00 | 1.16 | 0.00 | 1.26 | -14.01 | 96.79 | -59.62 | 109.84 | 0.8917 | 442.0 | 401.4 | |
| 2.32 | -10.00 | 2.49 | -10.00 | -13.31 | 97.02 | -59.39 | 109.15 | 0.8885 | 501.3 | 999999 | |
| 2.05 | 3.57 | 2.17 | 3.77 | -12.52 | 97.26 | -59.14 | 108.36 | 0.8849 | 371.6 | 172.2 | |
| 0.00 | 0.80 | 0.00 | 0.84 | -11.92 | 97.24 | -59.16 | 107.70 | 0.8838 | 221.0 | 199.0 | |
| 0.00 | 3.75 | 0.00 | 4.03 | -13.02 | 96.76 | -59.64 | 108.76 | 0.8898 | 13.0 | -58.5 | |
| 0.00 | 1.07 | 0.00 | 1.18 | -13.99 | 96.35 | -60.05 | 109.69 | 0.8949 | 308.0 | 307.3 | |
| 0.00 | 1.61 | 0.00 | 1.77 | -13.46 | 96.20 | -60.20 | 109.08 | 0.8949 | -702.0 | -602.3 | |
| 0.00 | 1.87 | 0.00 | 2.08 | -13.74 | 96.02 | -60.39 | 109.33 | 0.8968 | -473.0 | -381.5 | |
| 0.00 | 0.54 | 0.00 | 0.57 | -11.79 | 96.68 | -59.73 | 107.40 | 0.8879 | 118.0 | 185.2 | |
| 2.14 | 385.33 | 2.46 | 486.12 | -14.54 | 95.21 | -61.20 | 109.95 | 0.9042 | 516.1 | -232.7 | |
| 0.00 | 1.25 | 0.00 | 1.36 | -12.33 | 96.16 | -60.24 | 107.84 | 0.8928 | 211.0 | 105.6 | |
| 3.48 | 5.71 | 3.97 | 6.51 | -14.14 | 95.33 | -61.08 | 109.56 | 0.9025 | 528.4 | 369.7 | |
| 2.50 | -20.00 | 2.85 | -20.00 | -13.71 | 95.20 | -61.21 | 109.06 | 0.9026 | -252.4 | 999999 | |
| 0.00 | 1.43 | 0.00 | 1.57 | -12.10 | 95.87 | -60.54 | 107.52 | 0.8946 | 516.0 | 372.2 | |
| 0.00 | 0.71 | 0.00 | 0.78 | -11.88 | 95.89 | -60.51 | 107.28 | 0.8939 | 325.0 | 315.4 | |
| 0.00 | 1.25 | 0.00 | 1.46 | -14.38 | 94.62 | -61.78 | 109.61 | 0.9079 | 229.0 | 191.4 | |
| 1.25 | 3.93 | 1.40 | 4.39 | -12.51 | 95.39 | -61.02 | 107.82 | 0.8989 | 217.6 | 220.0 | |
| 4.64 | -20.00 | 5.50 | -20.00 | -14.67 | 94.35 | -62.06 | 109.84 | 0.9103 | 440.8 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.80 | -16.91 | 93.10 | -63.31 | 111.85 | 0.9226 | -280.0 | -340.7 | |
| 0.36 | 2.95 | 0.41 | 3.36 | -12.72 | 94.91 | -61.49 | 107.92 | 0.9027 | 90.5 | -2.3 | |
| 9.10 | -20.00 | 11.19 | -20.00 | -15.18 | 93.53 | -62.87 | 110.15 | 0.9167 | 379.0 | 999999 | |
| 13.30 | 62.03 | 15.88 | 72.86 | -12.28 | 93.49 | -62.91 | 107.07 | 0.9118 | -564.6 | -429.3 | |
| 49.18 | -20.00 | 63.44 | -20.00 | -14.67 | 92.11 | -64.30 | 109.24 | 0.9249 | -716.5 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.52 | -11.91 | 92.89 | -63.51 | 106.52 | 0.9152 | -147.0 | -88.3 | |
| 0.00 | 1.16 | 0.00 | 1.43 | -11.72 | 92.62 | -63.78 | 106.25 | 0.9167 | -195.0 | -152.1 | |
| 0.00 | 1.79 | 0.00 | 2.38 | -13.39 | 91.02 | -65.39 | 107.62 | 0.9295 | -270.0 | -282.9 | |
| 0.00 | 0.98 | 0.00 | 1.29 | -12.58 | 91.21 | -65.19 | 106.81 | 0.9271 | 198.0 | 256.1 | |
| 0.00 | 1.79 | 0.00 | 2.46 | -14.01 | 90.38 | -66.03 | 108.11 | 0.9343 | -243.0 | -158.1 | |
| 0.00 | 1.52 | 0.00 | 2.15 | -14.44 | 89.73 | -66.68 | 108.40 | 0.9387 | 371.0 | 326.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
