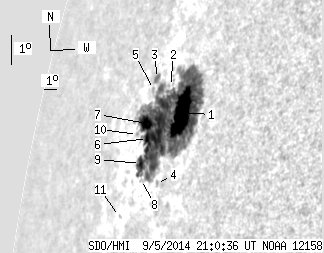

SDO HMI 2014-09-05 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.55 | 420.85 | 99.44 | 570.32 | 14.93 | 86.76 | -69.64 | 76.75 | 0.9321 | 112.6 | -164.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.98 | 406.75 | 64.99 | 549.91 | 15.30 | 87.72 | -68.68 | 76.39 | 0.9262 | 532.5 | -160.8 | |
| 0.00 | 0.98 | 0.00 | 1.36 | 15.95 | 86.25 | -70.16 | 75.65 | 0.9351 | -266.0 | -273.8 | |
| 0.00 | 5.44 | 0.00 | 7.99 | 16.04 | 84.91 | -71.50 | 75.50 | 0.9428 | -266.0 | -266.9 | |
| 0.00 | 2.32 | 0.00 | 3.11 | 13.01 | 87.03 | -69.38 | 78.83 | 0.9311 | -446.0 | -357.4 | |
| 0.00 | 1.52 | 0.00 | 2.24 | 15.68 | 84.81 | -71.60 | 75.88 | 0.9435 | -455.0 | -448.9 | |
| 3.84 | -1.00 | 5.54 | -1.00 | 14.22 | 85.38 | -71.03 | 77.46 | 0.9406 | -696.7 | 999999 | |
| 13.57 | -1.00 | 19.97 | -1.00 | 14.64 | 84.96 | -71.45 | 76.99 | 0.9429 | -686.0 | 999999 | |
| 0.00 | 1.34 | 0.00 | 1.91 | 12.98 | 85.67 | -70.74 | 78.79 | 0.9393 | -398.0 | -365.4 | |
| 6.16 | -1.00 | 8.94 | -1.00 | 13.43 | 85.27 | -71.14 | 78.29 | 0.9415 | -387.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 1.76 | 14.23 | 84.38 | -72.03 | 77.40 | 0.9462 | 353.0 | 319.2 | |
| 0.00 | 1.34 | 0.00 | 2.04 | 11.68 | 84.36 | -72.05 | 80.09 | 0.9472 | -116.0 | -136.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
