SDO HMI 2014-09-05 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.28 | 30.36 | 4.73 | 15.42 | 8.67 | 143.63 | -12.77 | 82.71 | 0.2214 | 205.2 | -228.8 | |
|
previous
or next observation for the same group /

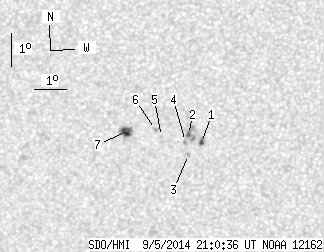

back to the solar disc SDO HMI 2014-09-05 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.05 | 4.02 | 1.04 | 2.03 | 8.49 | 144.78 | -11.63 | 83.06 | 0.2018 | -1059.1 | -720.5 | |
| 1.34 | 9.91 | 0.68 | 5.02 | 8.72 | 144.36 | -12.04 | 82.14 | 0.2092 | -1005.3 | -842.6 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 8.12 | 144.38 | -12.03 | 85.03 | 0.2080 | -1049.0 | -756.9 | |
| 0.00 | 1.96 | 0.00 | 0.99 | 8.51 | 144.28 | -12.13 | 83.20 | 0.2103 | -600.0 | -687.4 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 8.64 | 143.52 | -12.89 | 82.90 | 0.2232 | 786.0 | 573.0 | |
| 0.00 | 1.61 | 0.00 | 0.82 | 8.85 | 143.32 | -13.08 | 82.07 | 0.2268 | 1107.0 | 937.9 | |
| 5.89 | 11.07 | 3.01 | 5.65 | 8.76 | 142.42 | -13.99 | 82.82 | 0.2419 | 1107.1 | 842.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
