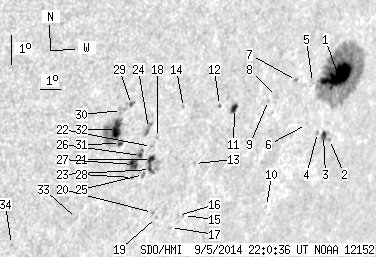

SDO HMI 2014-09-05 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.56 | 317.71 | 59.54 | 282.40 | -14.68 | 207.73 | 51.88 | 246.61 | 0.8291 | 75.7 | 61.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.19 | 194.42 | 32.20 | 183.89 | -14.21 | 210.46 | 54.61 | 248.30 | 0.8526 | 823.3 | 231.4 | |
| 0.00 | 1.43 | 0.00 | 1.38 | -16.31 | 210.79 | 54.93 | 246.09 | 0.8613 | -578.0 | -506.3 | |
| 3.30 | 6.34 | 3.16 | 6.07 | -16.14 | 210.39 | 54.53 | 246.13 | 0.8575 | -179.4 | -253.1 | |
| 0.00 | 1.61 | 0.00 | 1.52 | -16.00 | 210.00 | 54.15 | 246.14 | 0.8540 | 529.0 | 410.1 | |
| 0.00 | 2.95 | 0.00 | 2.68 | -14.29 | 209.10 | 53.25 | 247.72 | 0.8412 | 556.0 | 488.3 | |
| 0.00 | 0.71 | 0.00 | 0.66 | -15.67 | 209.28 | 53.43 | 246.25 | 0.8469 | 261.0 | 178.9 | |
| 0.00 | 1.52 | 0.00 | 1.35 | -14.14 | 208.22 | 52.37 | 247.57 | 0.8329 | 754.0 | 601.2 | |
| 0.00 | 1.79 | 0.00 | 1.56 | -14.56 | 207.34 | 51.49 | 246.75 | 0.8265 | 641.0 | 497.0 | |
| 0.00 | 1.43 | 0.00 | 1.24 | -14.65 | 206.97 | 51.11 | 246.50 | 0.8234 | 448.0 | 450.8 | |
| 0.00 | 0.80 | 0.00 | 0.74 | -18.23 | 208.21 | 52.36 | 242.98 | 0.8463 | 387.0 | 300.4 | |
| 3.57 | 5.45 | 2.99 | 4.56 | -14.74 | 205.33 | 49.47 | 245.71 | 0.8086 | -452.4 | -225.3 | |
| 0.36 | 1.16 | 0.29 | 0.96 | -14.56 | 204.55 | 48.70 | 245.58 | 0.8007 | 605.2 | 593.3 | |
| 0.00 | 1.07 | 0.00 | 0.88 | -16.38 | 203.94 | 48.08 | 243.19 | 0.8020 | -516.0 | -397.8 | |
| 0.00 | 1.16 | 0.00 | 0.92 | -14.46 | 202.84 | 46.99 | 244.94 | 0.7839 | 448.0 | 337.5 | |
| 0.00 | 1.43 | 0.00 | 1.20 | -18.10 | 204.01 | 48.15 | 241.27 | 0.8097 | -313.0 | -274.6 | |
| 0.00 | 1.07 | 0.00 | 0.89 | -18.07 | 203.76 | 47.90 | 241.18 | 0.8074 | -611.0 | -472.5 | |
| 0.00 | 1.34 | 0.00 | 1.12 | -18.44 | 203.51 | 47.66 | 240.64 | 0.8067 | -498.0 | -370.4 | |
| 0.00 | 1.25 | 0.00 | 0.98 | -15.34 | 201.90 | 46.05 | 243.45 | 0.7784 | -240.0 | -189.2 | |
| 0.00 | 0.98 | 0.00 | 0.80 | -18.03 | 202.71 | 46.85 | 240.71 | 0.7977 | -389.0 | -304.1 | |
| 0.00 | 1.52 | 0.00 | 1.23 | -17.85 | 202.46 | 46.60 | 240.80 | 0.7945 | -543.0 | -503.3 | |
| 3.66 | 15.80 | 2.89 | 12.52 | -16.05 | 201.84 | 45.98 | 242.58 | 0.7808 | -530.4 | -48.7 | |
| 0.00 | 1.43 | 0.00 | 1.12 | -15.61 | 201.71 | 45.85 | 243.03 | 0.7777 | -646.0 | -478.3 | |
| 2.41 | -21.00 | 1.91 | -21.00 | -16.38 | 201.89 | 46.04 | 242.22 | 0.7828 | -525.2 | 999999 | |
| 0.00 | 6.07 | 0.00 | 4.71 | -15.00 | 201.40 | 45.55 | 243.61 | 0.7720 | -715.0 | -548.0 | |
| 0.00 | 2.50 | 0.00 | 1.97 | -16.52 | 201.61 | 45.76 | 241.92 | 0.7807 | -528.0 | -431.0 | |
| 1.52 | 4.55 | 1.18 | 3.55 | -15.87 | 201.28 | 45.43 | 242.52 | 0.7747 | -741.2 | -609.7 | |
| 5.80 | 7.94 | 4.52 | 6.18 | -16.14 | 201.05 | 45.19 | 242.08 | 0.7736 | -809.8 | -642.6 | |
| 0.00 | 1.25 | 0.00 | 0.98 | -16.57 | 201.13 | 45.28 | 241.61 | 0.7764 | -492.0 | -418.1 | |
| 0.80 | 3.30 | 0.61 | 2.50 | -14.13 | 200.42 | 44.56 | 244.17 | 0.7583 | -662.7 | -533.2 | |
| 0.00 | 5.45 | 0.00 | 4.10 | -14.29 | 200.02 | 44.17 | 243.78 | 0.7549 | -646.0 | -592.2 | |
| 1.52 | 37.31 | 1.16 | 28.13 | -15.38 | 200.26 | 44.40 | 242.58 | 0.7623 | -611.4 | -584.8 | |
| 11.43 | -31.00 | 8.63 | -31.00 | -14.90 | 199.96 | 44.10 | 243.00 | 0.7571 | -877.1 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.36 | -17.72 | 199.00 | 43.14 | 239.12 | 0.7613 | -319.0 | -307.5 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -18.34 | 196.40 | 40.54 | 236.83 | 0.7393 | -281.0 | -355.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
