SDO HMI 2014-09-05 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.73 | 0.00 | 5.64 | -20.87 | 169.96 | 14.10 | 205.95 | 0.5224 | 656.5 | 530.7 | |
|
previous
or next observation for the same group /

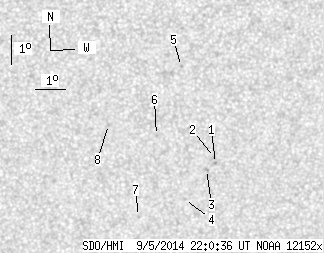

back to the solar disc SDO HMI 2014-09-05 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.73 | -21.16 | 171.22 | 15.37 | 207.66 | 0.5345 | 748.0 | 590.9 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -20.95 | 171.17 | 15.31 | 207.77 | 0.5314 | 770.0 | 661.5 | |
| 0.00 | 1.70 | 0.00 | 0.99 | -21.35 | 170.94 | 15.09 | 207.05 | 0.5351 | 761.0 | 611.3 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -22.37 | 170.31 | 14.45 | 205.20 | 0.5442 | 554.0 | 407.2 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -17.83 | 169.79 | 13.93 | 208.61 | 0.4807 | 730.0 | 558.3 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -20.13 | 169.16 | 13.30 | 205.31 | 0.5072 | 484.0 | 418.1 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -22.91 | 168.81 | 12.96 | 202.46 | 0.5426 | 688.0 | 519.8 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -19.71 | 167.54 | 11.69 | 202.93 | 0.4915 | 517.0 | 447.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
