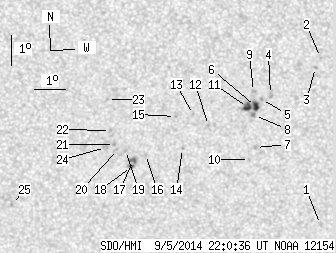

SDO HMI 2014-09-05 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.09 | 50.79 | 5.56 | 28.01 | -18.47 | 159.50 | 3.65 | 188.01 | 0.4414 | 291.5 | 201.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-05 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.92 | -21.76 | 163.38 | 7.52 | 194.10 | 0.5010 | 362.0 | 318.8 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -16.13 | 163.13 | 7.28 | 197.08 | 0.4159 | 717.0 | 561.1 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -16.46 | 162.98 | 7.13 | 196.53 | 0.4202 | 953.0 | 790.9 | |
| 0.00 | 3.66 | 0.00 | 2.00 | -17.33 | 161.58 | 5.73 | 192.92 | 0.4279 | 606.0 | 620.4 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.49 | 161.30 | 5.45 | 192.22 | 0.4295 | 959.0 | 805.7 | |
| 3.66 | 12.23 | 2.01 | 6.71 | -17.72 | 161.12 | 5.26 | 191.70 | 0.4324 | 1030.0 | 826.4 | |
| 0.00 | 2.32 | 0.00 | 1.29 | -19.10 | 161.16 | 5.30 | 191.15 | 0.4537 | 851.0 | 533.5 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -18.02 | 161.09 | 5.24 | 191.51 | 0.4370 | 716.0 | 629.9 | |
| 0.00 | 2.23 | 0.00 | 1.22 | -17.22 | 161.04 | 5.18 | 191.78 | 0.4244 | 971.0 | 772.4 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.50 | 160.98 | 5.12 | 190.60 | 0.4593 | 669.0 | 599.3 | |
| 3.93 | -6.00 | 2.16 | -6.00 | -17.75 | 160.86 | 5.01 | 191.14 | 0.4321 | 1009.6 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.03 | -18.34 | 159.63 | 3.78 | 188.25 | 0.4380 | 724.0 | 390.2 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.97 | 159.15 | 3.29 | 187.31 | 0.4311 | 813.0 | 674.0 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -19.10 | 158.82 | 2.96 | 186.28 | 0.4483 | 772.0 | 551.1 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.03 | 158.58 | 2.72 | 186.04 | 0.4311 | 801.0 | 682.2 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -19.30 | 157.63 | 1.78 | 183.75 | 0.4497 | -644.0 | -466.8 | |
| 1.52 | 5.89 | 0.84 | 3.27 | -19.50 | 157.25 | 1.40 | 182.92 | 0.4525 | -1024.5 | -778.5 | |
| 0.98 | -17.00 | 0.55 | -17.00 | -19.70 | 157.19 | 1.33 | 182.77 | 0.4556 | -800.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -19.16 | 156.99 | 1.14 | 182.42 | 0.4470 | -817.0 | -645.5 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -19.13 | 156.74 | 0.88 | 181.88 | 0.4463 | -819.0 | -583.7 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.96 | 156.64 | 0.79 | 181.68 | 0.4436 | -1027.0 | -891.5 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -18.49 | 156.51 | 0.66 | 181.43 | 0.4362 | -1011.0 | -809.9 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.45 | 156.41 | 0.56 | 181.28 | 0.4197 | -813.0 | -659.0 | |
| 0.00 | 2.32 | 0.00 | 1.28 | -19.06 | 156.35 | 0.50 | 181.06 | 0.4451 | -738.0 | -667.1 | |
| 0.00 | 1.79 | 0.00 | 1.01 | -21.00 | 153.31 | -2.54 | 175.00 | 0.4770 | 748.0 | 466.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
