SDO HMI 2014-09-05 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.21 | 0.00 | 5.34 | -8.77 | 192.96 | 37.11 | 247.18 | 0.6490 | -68.7 | -148.0 | |
|
previous
or next observation for the same group /

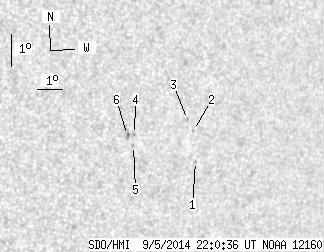

back to the solar disc SDO HMI 2014-09-05 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.72 | -9.65 | 194.68 | 38.82 | 246.93 | 0.6740 | 632.0 | 553.6 | |
| 0.00 | 1.16 | 0.00 | 0.77 | -8.66 | 194.47 | 38.61 | 248.19 | 0.6668 | 494.0 | 386.7 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -8.29 | 194.19 | 38.34 | 248.56 | 0.6617 | 503.0 | 492.1 | |
| 0.00 | 1.34 | 0.00 | 0.86 | -8.60 | 192.18 | 36.33 | 246.98 | 0.6387 | -685.0 | -579.3 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -8.95 | 192.18 | 36.33 | 246.48 | 0.6405 | -593.0 | -407.0 | |
| 0.00 | 2.68 | 0.00 | 1.71 | -8.61 | 191.92 | 36.06 | 246.80 | 0.6355 | -763.0 | -549.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
