SDO HMI 2014-09-05 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.36 | 0.00 | 8.15 | 11.28 | 172.72 | 17.41 | 291.28 | 0.3163 | 221.9 | 298.1 | |
|
previous
or next observation for the same group /

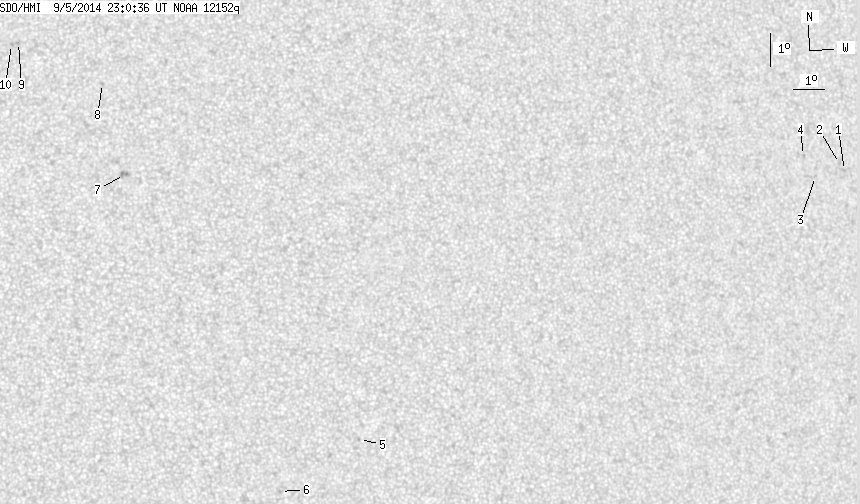

back to the solar disc SDO HMI 2014-09-05 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.90 | 11.01 | 188.43 | 33.12 | 279.08 | 0.5453 | -823.0 | -548.0 | |
| 0.00 | 1.34 | 0.00 | 0.79 | 11.23 | 188.27 | 32.97 | 279.51 | 0.5433 | -565.0 | -415.9 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 10.90 | 187.35 | 32.05 | 279.00 | 0.5296 | -737.0 | -589.7 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 11.56 | 187.00 | 31.70 | 280.31 | 0.5253 | -618.0 | -536.2 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 3.76 | 171.61 | 16.31 | 258.72 | 0.2870 | 799.0 | 642.5 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 2.27 | 169.11 | 13.81 | 250.76 | 0.2538 | 789.0 | 605.7 | |
| 0.00 | 4.20 | 0.00 | 2.11 | 11.98 | 164.51 | 9.20 | 298.22 | 0.1784 | 961.0 | 869.5 | |
| 0.00 | 1.52 | 0.00 | 0.77 | 14.76 | 163.92 | 8.62 | 312.32 | 0.1969 | 773.0 | 506.0 | |
| 0.00 | 1.52 | 0.00 | 0.76 | 16.05 | 161.32 | 6.01 | 326.77 | 0.1845 | 826.0 | 673.4 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 15.99 | 161.09 | 5.79 | 327.56 | 0.1816 | 814.0 | 704.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
