SDO HMI 2014-09-05 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.13 | 445.38 | 106.68 | 576.38 | 14.85 | 86.66 | -68.64 | 76.87 | 0.9257 | 66.8 | -137.2 | |
|
previous
or next observation for the same group /

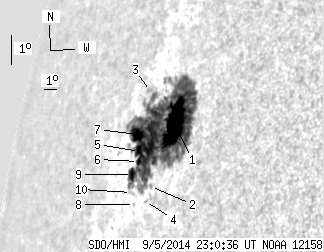

back to the solar disc SDO HMI 2014-09-05 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.15 | 437.70 | 63.73 | 566.04 | 15.31 | 87.70 | -67.60 | 76.41 | 0.9191 | 559.4 | -134.5 | |
| 0.00 | 1.61 | 0.00 | 2.06 | 13.27 | 86.98 | -68.33 | 78.61 | 0.9243 | -331.0 | -275.9 | |
| 0.00 | 3.48 | 0.00 | 4.83 | 16.01 | 85.07 | -70.23 | 75.58 | 0.9355 | -94.0 | -175.1 | |
| 0.00 | 0.89 | 0.00 | 1.16 | 12.78 | 86.83 | -68.47 | 79.12 | 0.9254 | -538.0 | -499.2 | |
| 7.50 | -1.00 | 10.28 | -1.00 | 14.17 | 85.42 | -69.88 | 77.56 | 0.9338 | -711.1 | 999999 | |
| 2.59 | -1.00 | 3.53 | -1.00 | 13.87 | 85.53 | -69.77 | 77.89 | 0.9332 | -672.9 | 999999 | |
| 13.84 | -1.00 | 19.39 | -1.00 | 14.64 | 84.90 | -70.40 | 77.04 | 0.9368 | -678.5 | 999999 | |
| 0.00 | 1.43 | 0.00 | 1.92 | 12.59 | 85.99 | -69.32 | 79.29 | 0.9308 | -371.0 | -304.8 | |
| 7.05 | -1.00 | 9.75 | -1.00 | 13.44 | 85.27 | -70.03 | 78.34 | 0.9349 | -383.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.37 | 12.91 | 85.52 | -69.78 | 78.92 | 0.9336 | -283.0 | -272.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
