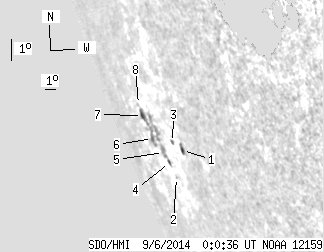

SDO HMI 2014-09-06 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.68 | 40.78 | 19.92 | 105.82 | -20.43 | 79.08 | -75.67 | 112.48 | 0.9832 | -169.3 | -341.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.52 | 4.37 | 3.19 | 9.16 | -20.63 | 82.34 | -72.41 | 113.36 | 0.9728 | 207.4 | 249.6 | |
| 0.00 | 0.71 | 0.00 | 1.81 | -21.82 | 80.05 | -74.70 | 114.05 | 0.9815 | 256.0 | 210.0 | |
| 0.54 | 1.43 | 1.19 | 3.19 | -20.48 | 81.41 | -73.34 | 113.00 | 0.9760 | 110.5 | 60.7 | |
| 0.89 | 2.14 | 2.26 | 5.44 | -21.34 | 79.87 | -74.88 | 113.54 | 0.9817 | -208.2 | -156.6 | |
| 0.00 | 4.46 | 0.00 | 11.52 | -21.05 | 79.54 | -75.22 | 113.18 | 0.9825 | -417.0 | -391.0 | |
| 1.61 | 26.87 | 4.50 | 72.45 | -20.70 | 78.60 | -76.15 | 112.65 | 0.9849 | -566.6 | -448.0 | |
| 3.12 | -6.00 | 8.78 | -6.00 | -19.98 | 78.34 | -76.41 | 111.88 | 0.9852 | -180.2 | 999999 | |
| 0.00 | 0.80 | 0.00 | 2.25 | -19.62 | 78.33 | -76.42 | 111.52 | 0.9850 | 91.0 | 87.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
