SDO HMI 2014-09-06 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.59 | 36.17 | 8.88 | 18.25 | 8.73 | 143.88 | -10.88 | 81.44 | 0.1895 | -29.7 | -190.9 | |
|
previous
or next observation for the same group /

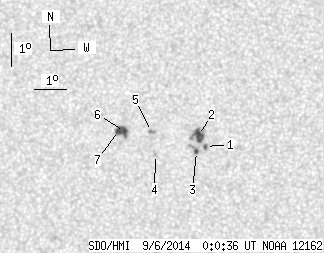

back to the solar disc SDO HMI 2014-09-06 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.98 | 2.32 | 0.49 | 1.17 | 8.48 | 144.95 | -9.80 | 82.13 | 0.1707 | -1123.7 | -896.0 | |
| 7.41 | 14.11 | 3.73 | 7.10 | 8.81 | 144.73 | -10.03 | 80.41 | 0.1753 | -1117.9 | -712.3 | |
| 1.43 | 5.18 | 0.72 | 2.61 | 8.33 | 144.68 | -10.08 | 83.20 | 0.1751 | -997.1 | -729.0 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 8.21 | 143.40 | -11.35 | 84.40 | 0.1966 | 929.0 | 677.4 | |
| 0.00 | 2.77 | 0.00 | 1.40 | 8.90 | 143.26 | -11.49 | 80.99 | 0.2002 | 985.0 | 750.2 | |
| 4.11 | 10.54 | 2.08 | 5.34 | 8.88 | 142.42 | -12.34 | 81.58 | 0.2143 | 1160.7 | 793.9 | |
| 3.66 | -6.00 | 1.86 | -6.00 | 8.90 | 142.23 | -12.52 | 81.57 | 0.2176 | 1011.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
