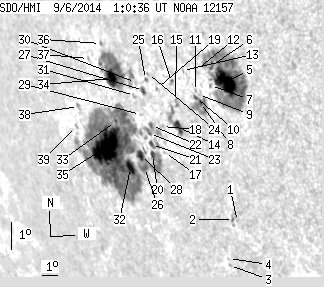

SDO HMI 2014-09-06 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.69 | 734.29 | 143.35 | 793.22 | -13.67 | 94.61 | -59.60 | 109.51 | 0.8894 | -124.8 | -131.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 01:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.52 | -16.22 | 99.33 | -54.87 | 113.83 | 0.8605 | -493.0 | -508.7 | |
| 0.00 | 3.57 | 0.00 | 3.47 | -16.18 | 99.13 | -55.07 | 113.71 | 0.8620 | -391.0 | -306.1 | |
| 0.00 | 0.63 | 0.00 | 0.63 | -17.78 | 98.18 | -56.02 | 115.12 | 0.8741 | -364.0 | -319.3 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -17.55 | 98.24 | -55.97 | 114.88 | 0.8730 | -317.0 | -370.0 | |
| 30.45 | 165.37 | 27.58 | 149.44 | -11.66 | 100.29 | -53.91 | 109.06 | 0.8394 | 868.6 | 356.2 | |
| 1.79 | -5.00 | 1.64 | -5.00 | -11.19 | 99.68 | -54.52 | 108.31 | 0.8435 | 486.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.91 | -11.85 | 99.44 | -54.77 | 108.98 | 0.8474 | 399.0 | 344.7 | |
| 1.43 | 21.25 | 1.36 | 20.25 | -12.46 | 98.70 | -55.50 | 109.44 | 0.8554 | 619.9 | 195.6 | |
| 0.00 | 1.70 | 0.00 | 1.61 | -12.21 | 98.67 | -55.53 | 109.14 | 0.8550 | 480.0 | 479.8 | |
| 0.89 | -8.00 | 0.85 | -8.00 | -12.33 | 98.47 | -55.74 | 109.21 | 0.8570 | 371.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.93 | -12.13 | 98.53 | -55.67 | 109.01 | 0.8560 | 347.0 | 302.5 | |
| 0.00 | 1.16 | 0.00 | 1.09 | -11.45 | 98.74 | -55.46 | 108.30 | 0.8524 | 485.0 | 384.2 | |
| 0.00 | 1.34 | 0.00 | 1.29 | -11.53 | 98.00 | -56.20 | 108.16 | 0.8590 | 389.0 | 329.4 | |
| 6.25 | 18.22 | 6.25 | 18.28 | -13.43 | 97.12 | -57.08 | 110.00 | 0.8709 | 587.3 | -46.7 | |
| 0.00 | 1.61 | 0.00 | 1.59 | -12.56 | 97.26 | -56.94 | 109.08 | 0.8676 | 308.0 | 239.7 | |
| 0.00 | 2.05 | 0.00 | 2.02 | -11.96 | 97.24 | -56.96 | 108.40 | 0.8663 | 203.0 | 4.1 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -14.36 | 95.93 | -58.27 | 110.64 | 0.8824 | 455.0 | 449.7 | |
| 0.00 | 1.43 | 0.00 | 1.47 | -13.51 | 96.16 | -58.04 | 109.78 | 0.8786 | -476.0 | -417.1 | |
| 0.00 | 0.89 | 0.00 | 0.91 | -12.29 | 96.26 | -57.94 | 108.47 | 0.8750 | 188.0 | 102.5 | |
| 2.32 | 407.09 | 2.49 | 473.75 | -14.52 | 95.14 | -59.06 | 110.56 | 0.8887 | 551.0 | -267.4 | |
| 2.05 | 6.07 | 2.19 | 6.43 | -14.19 | 95.22 | -58.98 | 110.23 | 0.8874 | 469.8 | 498.9 | |
| 0.98 | 11.16 | 1.03 | 11.76 | -13.55 | 95.48 | -58.72 | 109.62 | 0.8840 | -679.7 | -421.5 | |
| 0.63 | -22.00 | 0.66 | -22.00 | -13.83 | 95.25 | -58.95 | 109.85 | 0.8864 | 103.9 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.10 | -11.85 | 95.88 | -58.32 | 107.88 | 0.8771 | 274.0 | 324.5 | |
| 0.54 | 1.43 | 0.55 | 1.47 | -12.06 | 95.69 | -58.51 | 108.05 | 0.8791 | 446.2 | 369.3 | |
| 3.39 | -20.00 | 3.74 | -20.00 | -15.01 | 94.42 | -59.79 | 110.88 | 0.8952 | 290.7 | 999999 | |
| 1.79 | 3.84 | 1.86 | 4.01 | -12.44 | 95.43 | -58.77 | 108.39 | 0.8819 | 400.8 | 190.4 | |
| 5.18 | -20.00 | 5.70 | -20.00 | -14.64 | 94.34 | -59.86 | 110.45 | 0.8949 | 471.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -13.26 | 94.93 | -59.27 | 109.14 | 0.8875 | -702.0 | -650.0 | |
| 0.00 | 1.25 | 0.00 | 1.32 | -12.23 | 95.02 | -59.18 | 108.04 | 0.8846 | 145.0 | 94.2 | |
| 0.00 | 1.88 | 0.00 | 2.00 | -12.67 | 94.80 | -59.40 | 108.46 | 0.8873 | 191.0 | 72.6 | |
| 7.14 | -20.00 | 8.13 | -20.00 | -15.12 | 93.47 | -60.73 | 110.71 | 0.9021 | 518.7 | 999999 | |
| 1.16 | -20.00 | 1.31 | -20.00 | -13.68 | 93.18 | -61.02 | 109.08 | 0.9012 | -746.0 | 999999 | |
| 13.39 | 70.01 | 14.82 | 76.62 | -12.27 | 93.51 | -60.69 | 107.66 | 0.8960 | -671.6 | -396.9 | |
| 53.31 | -20.00 | 63.19 | -20.00 | -14.60 | 92.15 | -62.05 | 109.77 | 0.9101 | -790.8 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.78 | -11.20 | 93.22 | -60.98 | 106.42 | 0.8961 | -417.0 | -360.8 | |
| 0.00 | 1.70 | 0.00 | 1.95 | -11.79 | 92.21 | -61.99 | 106.79 | 0.9045 | -267.0 | -163.9 | |
| 0.00 | 2.86 | 0.00 | 3.52 | -13.48 | 90.78 | -63.42 | 108.21 | 0.9172 | -412.0 | -295.2 | |
| 0.00 | 1.79 | 0.00 | 2.26 | -14.17 | 90.29 | -63.91 | 108.82 | 0.9216 | -98.0 | -75.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
