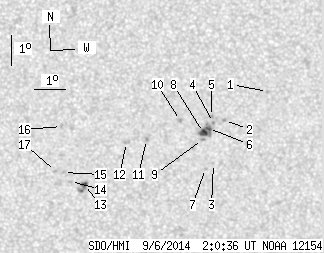

SDO HMI 2014-09-06 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.68 | 39.83 | 4.25 | 22.00 | -18.18 | 159.59 | 5.94 | 192.95 | 0.4431 | 349.2 | 223.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.64 | -16.44 | 163.04 | 9.39 | 201.36 | 0.4315 | 799.0 | 640.3 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -17.37 | 161.71 | 8.06 | 197.86 | 0.4383 | 861.0 | 687.4 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -18.80 | 161.42 | 7.77 | 196.29 | 0.4584 | 634.0 | 497.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.43 | 161.36 | 7.71 | 197.09 | 0.4376 | 908.0 | 777.5 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -17.23 | 161.29 | 7.64 | 197.08 | 0.4342 | 930.0 | 784.4 | |
| 1.61 | 12.06 | 0.89 | 6.65 | -17.62 | 161.21 | 7.56 | 196.64 | 0.4398 | 1065.3 | 803.8 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -18.96 | 161.17 | 7.52 | 195.69 | 0.4597 | 620.0 | 571.2 | |
| 4.02 | -6.00 | 2.22 | -6.00 | -17.76 | 161.06 | 7.41 | 196.23 | 0.4411 | 946.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -17.99 | 161.03 | 7.38 | 196.03 | 0.4445 | 631.0 | 566.7 | |
| 0.00 | 1.96 | 0.00 | 1.08 | -17.34 | 160.31 | 6.66 | 194.91 | 0.4317 | 827.0 | 674.1 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -17.96 | 159.24 | 5.59 | 192.29 | 0.4372 | 749.0 | 650.8 | |
| 0.00 | 2.68 | 0.00 | 1.47 | -18.05 | 158.61 | 4.96 | 190.89 | 0.4366 | 706.0 | 550.6 | |
| 2.05 | 7.32 | 1.14 | 4.07 | -19.45 | 157.30 | 3.65 | 187.60 | 0.4550 | -911.7 | -696.7 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -19.34 | 156.85 | 3.19 | 186.70 | 0.4525 | -793.0 | -681.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -19.04 | 156.62 | 2.96 | 186.30 | 0.4473 | -870.0 | -686.9 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -17.49 | 156.53 | 2.88 | 186.52 | 0.4230 | -876.0 | -683.9 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -19.00 | 156.36 | 2.71 | 185.77 | 0.4464 | -764.0 | -616.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
