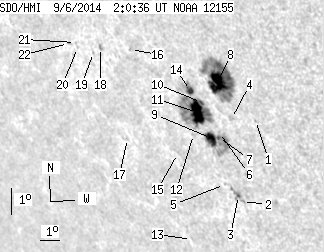

SDO HMI 2014-09-06 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.73 | 224.69 | 49.03 | 184.78 | -19.58 | 107.26 | -46.39 | 121.28 | 0.8004 | 643.8 | 337.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.57 | -19.84 | 109.47 | -44.18 | 122.76 | 0.7819 | -246.0 | -277.4 | |
| 0.00 | 2.05 | 0.00 | 1.73 | -22.76 | 107.71 | -45.94 | 125.04 | 0.8116 | 597.0 | 407.1 | |
| 0.71 | 6.52 | 0.60 | 5.51 | -22.56 | 107.61 | -46.04 | 124.77 | 0.8115 | 756.0 | 564.5 | |
| 0.00 | 3.21 | 0.00 | 2.60 | -19.88 | 108.36 | -45.29 | 122.20 | 0.7920 | 695.0 | 513.0 | |
| 0.00 | 0.36 | 0.00 | 0.30 | -22.24 | 107.09 | -46.56 | 124.14 | 0.8143 | 503.0 | 419.2 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -20.42 | 107.60 | -46.05 | 122.41 | 0.8013 | 515.0 | 516.3 | |
| 0.98 | 34.47 | 0.81 | 28.66 | -20.60 | 107.49 | -46.17 | 122.54 | 0.8032 | 853.7 | 377.2 | |
| 22.50 | 88.05 | 18.04 | 70.35 | -18.70 | 108.15 | -45.50 | 120.74 | 0.7884 | 957.3 | 504.3 | |
| 9.91 | -7.00 | 8.27 | -7.00 | -20.67 | 107.13 | -46.52 | 122.43 | 0.8066 | 701.2 | 999999 | |
| 0.89 | 68.59 | 0.74 | 57.23 | -19.46 | 107.13 | -46.52 | 121.08 | 0.8011 | 728.8 | 206.2 | |
| 20.63 | -10.00 | 17.17 | -10.00 | -19.83 | 106.80 | -46.85 | 121.32 | 0.8056 | 853.2 | 999999 | |
| 0.00 | 2.41 | 0.00 | 2.04 | -20.61 | 106.30 | -47.36 | 121.95 | 0.8136 | -156.0 | -63.1 | |
| 0.00 | 0.45 | 0.00 | 0.41 | -24.40 | 104.42 | -49.24 | 125.11 | 0.8452 | -401.0 | -349.4 | |
| 4.11 | 9.20 | 3.40 | 7.61 | -19.09 | 106.75 | -46.90 | 120.48 | 0.8028 | 729.0 | 387.8 | |
| 0.00 | 0.36 | 0.00 | 0.31 | -21.36 | 105.20 | -48.45 | 122.23 | 0.8261 | 472.0 | 439.0 | |
| 0.00 | 1.70 | 0.00 | 1.46 | -17.98 | 104.30 | -49.36 | 118.04 | 0.8199 | -152.0 | -138.4 | |
| 0.00 | 1.25 | 0.00 | 1.15 | -21.10 | 102.80 | -50.85 | 120.81 | 0.8445 | -233.0 | -219.0 | |
| 0.00 | 1.79 | 0.00 | 1.59 | -18.07 | 102.77 | -50.89 | 117.46 | 0.8334 | -648.0 | -533.8 | |
| 0.00 | 0.98 | 0.00 | 0.89 | -18.28 | 102.32 | -51.33 | 117.50 | 0.8380 | -371.0 | -366.6 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -18.19 | 101.53 | -52.12 | 117.08 | 0.8443 | -408.0 | -422.0 | |
| 0.00 | 0.71 | 0.00 | 0.66 | -18.03 | 101.50 | -52.16 | 116.89 | 0.8440 | -401.0 | -353.4 | |
| 0.00 | 1.34 | 0.00 | 1.24 | -18.11 | 101.10 | -52.55 | 116.80 | 0.8476 | -424.0 | -348.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
