SDO HMI 2014-09-06 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.87 | 36.80 | 6.46 | 18.50 | 8.75 | 143.80 | -9.85 | 80.60 | 0.1722 | -119.9 | 55.1 | |
|
previous
or next observation for the same group /

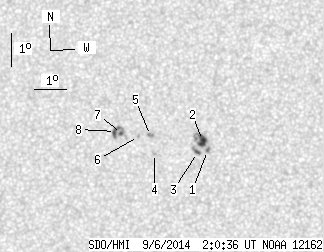

back to the solar disc SDO HMI 2014-09-06 02:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 1.88 | 0.31 | 0.94 | 8.44 | 145.06 | -8.59 | 81.47 | 0.1501 | -1078.0 | -863.9 | |
| 6.88 | 13.66 | 3.45 | 6.85 | 8.74 | 144.90 | -8.75 | 79.66 | 0.1536 | -1179.6 | -769.4 | |
| 1.25 | 4.29 | 0.63 | 2.15 | 8.38 | 144.75 | -8.90 | 82.15 | 0.1552 | -1035.0 | -761.5 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 8.32 | 143.42 | -10.23 | 83.31 | 0.1777 | 914.0 | 717.8 | |
| 0.00 | 2.77 | 0.00 | 1.39 | 8.86 | 143.28 | -10.37 | 80.39 | 0.1812 | 984.0 | 818.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 8.83 | 142.91 | -10.74 | 80.87 | 0.1874 | 863.0 | 715.0 | |
| 1.07 | 12.06 | 0.54 | 6.09 | 8.90 | 142.38 | -11.27 | 80.83 | 0.1965 | 1192.4 | 764.0 | |
| 3.04 | -7.00 | 1.53 | -7.00 | 8.96 | 142.19 | -11.46 | 80.67 | 0.1998 | 963.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
