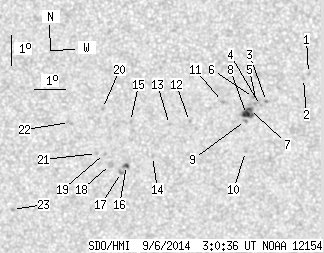

SDO HMI 2014-09-06 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.80 | 45.44 | 3.21 | 25.10 | -18.20 | 159.27 | 6.17 | 193.44 | 0.4448 | 232.3 | 153.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.79 | -16.45 | 163.03 | 9.93 | 202.46 | 0.4348 | 575.0 | 591.6 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.61 | 162.88 | 9.78 | 202.00 | 0.4363 | 770.0 | 650.3 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.35 | 161.73 | 8.63 | 199.05 | 0.4408 | 869.0 | 752.8 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.48 | 161.55 | 8.45 | 198.57 | 0.4418 | 610.0 | 487.4 | |
| 0.00 | 2.32 | 0.00 | 1.28 | -17.37 | 161.42 | 8.31 | 198.37 | 0.4396 | 637.0 | 698.3 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.21 | 161.31 | 8.21 | 198.28 | 0.4366 | 945.0 | 801.4 | |
| 0.80 | 12.95 | 0.44 | 7.15 | -17.60 | 161.20 | 8.10 | 197.76 | 0.4420 | 1078.9 | 796.5 | |
| 3.75 | -7.00 | 2.07 | -7.00 | -17.77 | 161.11 | 8.01 | 197.46 | 0.4440 | 964.7 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -17.97 | 161.09 | 7.99 | 197.28 | 0.4469 | 648.0 | 533.7 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -19.01 | 161.14 | 8.03 | 196.67 | 0.4626 | 638.0 | 560.7 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -17.32 | 160.33 | 7.22 | 196.14 | 0.4337 | 834.0 | 693.0 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.97 | 159.30 | 6.19 | 193.56 | 0.4395 | 748.0 | 645.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.06 | 158.66 | 5.56 | 192.17 | 0.4386 | 734.0 | 592.9 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -19.13 | 158.15 | 5.05 | 190.60 | 0.4535 | -687.0 | -451.5 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -17.94 | 157.41 | 4.31 | 189.54 | 0.4332 | -665.0 | -558.2 | |
| 1.25 | 2.77 | 0.70 | 1.54 | -19.42 | 157.32 | 4.22 | 188.79 | 0.4558 | -928.9 | -796.2 | |
| 0.00 | 2.32 | 0.00 | 1.29 | -19.66 | 157.17 | 4.06 | 188.39 | 0.4591 | -677.0 | -650.7 | |
| 0.00 | 3.75 | 0.00 | 2.08 | -19.38 | 156.81 | 3.70 | 187.74 | 0.4541 | -896.0 | -619.9 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -19.01 | 156.61 | 3.50 | 187.44 | 0.4479 | -697.0 | -658.6 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.50 | 156.51 | 3.41 | 187.72 | 0.4241 | -856.0 | -753.5 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -19.01 | 156.35 | 3.25 | 186.90 | 0.4474 | -741.0 | -619.2 | |
| 0.00 | 2.59 | 0.00 | 1.42 | -17.96 | 155.47 | 2.37 | 185.27 | 0.4295 | -720.0 | -546.3 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -20.90 | 153.67 | 0.56 | 181.12 | 0.4738 | 655.0 | 574.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
