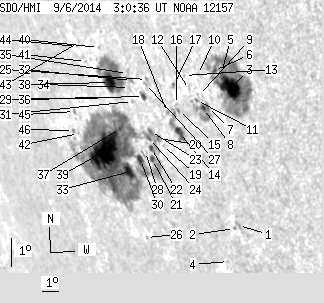

SDO HMI 2014-09-06 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.18 | 758.90 | 143.20 | 795.97 | -13.69 | 94.58 | -58.52 | 109.85 | 0.8814 | -150.9 | -123.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.30 | 0.00 | 3.10 | -16.21 | 99.31 | -53.79 | 114.22 | 0.8516 | -599.0 | -411.5 | |
| 0.00 | 1.07 | 0.00 | 1.01 | -16.33 | 99.04 | -54.06 | 114.26 | 0.8542 | -395.0 | -325.2 | |
| 29.74 | 158.00 | 26.14 | 138.77 | -11.66 | 100.42 | -52.68 | 109.48 | 0.8283 | 934.0 | 355.1 | |
| 0.00 | 0.36 | 0.00 | 0.35 | -17.50 | 98.21 | -54.89 | 115.22 | 0.8645 | -190.0 | -150.0 | |
| 0.89 | -3.00 | 0.79 | -3.00 | -11.22 | 100.08 | -53.02 | 108.85 | 0.8302 | 604.0 | 999999 | |
| 1.25 | -3.00 | 1.11 | -3.00 | -11.20 | 99.73 | -53.38 | 108.70 | 0.8333 | 490.2 | 999999 | |
| 1.34 | 20.10 | 1.23 | 18.56 | -12.41 | 99.01 | -54.10 | 109.85 | 0.8431 | 622.3 | 149.0 | |
| 1.96 | -7.00 | 1.81 | -7.00 | -12.50 | 98.76 | -54.34 | 109.87 | 0.8455 | 591.2 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.40 | -12.10 | 98.62 | -54.48 | 109.37 | 0.8457 | 386.0 | 337.8 | |
| 0.00 | 0.98 | 0.00 | 0.90 | -11.42 | 98.77 | -54.33 | 108.64 | 0.8425 | 437.0 | 346.1 | |
| 0.00 | 1.43 | 0.00 | 1.33 | -12.28 | 98.46 | -54.64 | 109.51 | 0.8475 | 330.0 | 310.4 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -11.96 | 98.18 | -54.92 | 109.06 | 0.8491 | 244.0 | 310.0 | |
| 0.00 | 0.98 | 0.00 | 0.92 | -11.53 | 98.04 | -55.06 | 108.53 | 0.8492 | 408.0 | 396.9 | |
| 6.07 | 17.86 | 5.89 | 17.36 | -13.44 | 97.14 | -55.97 | 110.37 | 0.8618 | 635.9 | 19.5 | |
| 0.00 | 1.70 | 0.00 | 1.63 | -12.72 | 97.33 | -55.77 | 109.63 | 0.8583 | 244.0 | 309.3 | |
| 0.00 | 0.89 | 0.00 | 0.86 | -12.53 | 97.28 | -55.82 | 109.41 | 0.8582 | 333.0 | 194.2 | |
| 0.00 | 2.05 | 0.00 | 1.96 | -11.93 | 97.32 | -55.79 | 108.74 | 0.8564 | 249.0 | 147.7 | |
| 0.00 | 1.88 | 0.00 | 1.83 | -12.85 | 96.67 | -56.43 | 109.57 | 0.8642 | -320.0 | -324.8 | |
| 0.00 | 0.71 | 0.00 | 0.72 | -13.98 | 95.97 | -57.14 | 110.59 | 0.8727 | 405.0 | 386.1 | |
| 1.16 | 458.10 | 1.17 | 511.89 | -13.78 | 95.82 | -57.29 | 110.31 | 0.8733 | -517.8 | -232.8 | |
| 2.32 | -20.00 | 2.41 | -20.00 | -14.52 | 95.16 | -57.94 | 110.92 | 0.8802 | 563.0 | 999999 | |
| 2.50 | -20.00 | 2.57 | -20.00 | -14.16 | 95.25 | -57.85 | 110.55 | 0.8787 | 479.8 | 999999 | |
| 1.61 | -20.00 | 1.64 | -20.00 | -13.60 | 95.42 | -57.68 | 109.99 | 0.8760 | -689.8 | 999999 | |
| 1.16 | -20.00 | 1.19 | -20.00 | -13.84 | 95.27 | -57.84 | 110.21 | 0.8778 | 31.6 | 999999 | |
| 0.00 | 1.34 | 0.00 | 1.33 | -11.90 | 95.80 | -57.30 | 108.24 | 0.8690 | 365.0 | 334.4 | |
| 0.00 | 0.80 | 0.00 | 0.90 | -17.23 | 93.51 | -59.60 | 113.31 | 0.8988 | -321.0 | -282.0 | |
| 0.00 | 1.79 | 0.00 | 1.78 | -12.04 | 95.70 | -57.41 | 108.36 | 0.8702 | 569.0 | 444.5 | |
| 0.00 | 1.25 | 0.00 | 1.30 | -14.30 | 94.84 | -58.26 | 110.58 | 0.8822 | 228.0 | 132.6 | |
| 2.32 | 4.47 | 2.35 | 4.51 | -12.48 | 95.43 | -57.68 | 108.76 | 0.8734 | 268.6 | 140.2 | |
| 4.56 | -20.00 | 4.84 | -20.00 | -14.61 | 94.41 | -58.69 | 110.77 | 0.8862 | 512.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 1.02 | -12.72 | 94.69 | -58.41 | 108.80 | 0.8797 | 38.0 | -23.1 | |
| 0.00 | 2.23 | 0.00 | 2.28 | -12.03 | 94.88 | -58.22 | 108.11 | 0.8767 | 39.0 | -94.0 | |
| 8.57 | -20.00 | 9.41 | -20.00 | -15.09 | 93.51 | -59.59 | 111.02 | 0.8939 | 512.7 | 999999 | |
| 0.00 | 1.43 | 0.00 | 1.47 | -12.28 | 94.67 | -58.43 | 108.31 | 0.8789 | -187.0 | -151.2 | |
| 0.00 | 3.66 | 0.00 | 3.76 | -11.83 | 94.71 | -58.39 | 107.83 | 0.8776 | -348.0 | -248.7 | |
| 0.00 | 0.98 | 0.00 | 1.04 | -12.66 | 94.05 | -59.05 | 108.55 | 0.8846 | -424.0 | -407.6 | |
| 1.88 | -20.00 | 2.03 | -20.00 | -13.71 | 93.57 | -59.53 | 109.54 | 0.8904 | -927.7 | 999999 | |
| 13.40 | 61.36 | 14.32 | 65.16 | -12.25 | 93.47 | -59.63 | 107.94 | 0.8881 | -711.7 | -446.0 | |
| 56.45 | -20.00 | 64.30 | -20.00 | -14.56 | 92.24 | -60.86 | 110.07 | 0.9019 | -831.3 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.67 | -11.18 | 93.18 | -59.92 | 106.68 | 0.8881 | -382.0 | -333.6 | |
| 0.00 | 0.98 | 0.00 | 1.09 | -11.74 | 92.16 | -60.95 | 107.01 | 0.8969 | -227.0 | -160.1 | |
| 0.00 | 0.89 | 0.00 | 1.07 | -14.20 | 90.62 | -62.48 | 109.23 | 0.9123 | -276.0 | -173.8 | |
| 0.00 | 0.89 | 0.00 | 1.00 | -11.16 | 91.92 | -61.18 | 106.33 | 0.8975 | -302.0 | -287.2 | |
| 0.00 | 0.89 | 0.00 | 1.00 | -11.31 | 91.74 | -61.37 | 106.44 | 0.8991 | -225.0 | -183.9 | |
| 0.00 | 1.61 | 0.00 | 1.91 | -13.49 | 90.69 | -62.41 | 108.49 | 0.9105 | -264.0 | -210.9 | |
| 0.00 | 1.52 | 0.00 | 1.84 | -14.14 | 90.31 | -62.79 | 109.08 | 0.9143 | -118.0 | -60.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
