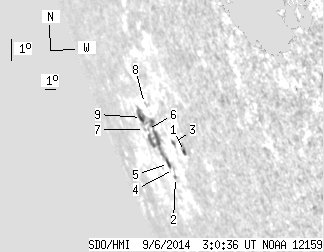

SDO HMI 2014-09-06 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.68 | 50.27 | 17.23 | 114.17 | -20.52 | 79.37 | -73.74 | 112.96 | 0.9772 | -136.6 | -332.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.52 | 4.64 | 2.87 | 8.77 | -20.62 | 82.42 | -70.68 | 113.74 | 0.9660 | 280.8 | 303.8 | |
| 0.00 | 1.43 | 0.00 | 3.20 | -21.78 | 80.08 | -73.03 | 114.37 | 0.9760 | 332.0 | 276.5 | |
| 0.63 | 2.59 | 1.24 | 5.15 | -20.47 | 81.47 | -71.63 | 113.37 | 0.9697 | 202.4 | 112.1 | |
| 0.00 | 0.71 | 0.00 | 1.57 | -21.49 | 80.23 | -72.87 | 114.12 | 0.9752 | 416.0 | 357.6 | |
| 2.05 | 38.58 | 4.62 | 89.88 | -21.34 | 79.87 | -73.24 | 113.88 | 0.9764 | -170.2 | -442.1 | |
| 0.00 | 1.07 | 0.00 | 2.57 | -20.36 | 78.70 | -74.40 | 112.65 | 0.9794 | -379.0 | -391.3 | |
| 0.00 | 0.98 | 0.00 | 2.44 | -20.41 | 78.25 | -74.85 | 112.62 | 0.9809 | -314.0 | -278.8 | |
| 0.00 | 0.27 | 0.00 | 0.59 | -19.39 | 79.59 | -73.51 | 111.87 | 0.9757 | -443.0 | -421.3 | |
| 3.48 | -5.00 | 8.50 | -5.00 | -19.99 | 78.46 | -74.64 | 112.24 | 0.9799 | -343.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
