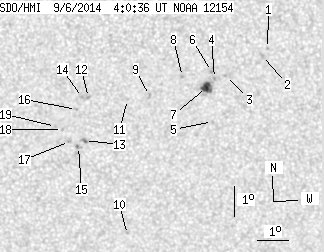

SDO HMI 2014-09-06 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.61 | 34.38 | 3.66 | 19.02 | -18.19 | 159.64 | 7.08 | 195.33 | 0.4477 | 216.2 | 65.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.44 | -16.47 | 163.07 | 10.51 | 203.61 | 0.4386 | 713.0 | 601.4 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -16.70 | 162.92 | 10.36 | 203.10 | 0.4410 | 795.0 | 632.7 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -17.33 | 161.76 | 9.21 | 200.24 | 0.4436 | 877.0 | 709.3 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.42 | 161.42 | 8.86 | 199.46 | 0.4431 | 955.0 | 778.8 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -18.86 | 161.42 | 8.87 | 198.40 | 0.4643 | 617.0 | 470.2 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.19 | 161.31 | 8.76 | 199.43 | 0.4390 | 840.0 | 762.4 | |
| 6.61 | 10.18 | 3.66 | 5.63 | -17.72 | 161.17 | 8.62 | 198.74 | 0.4462 | 999.0 | 702.3 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -17.33 | 160.39 | 7.83 | 197.41 | 0.4367 | 863.0 | 686.1 | |
| 0.00 | 1.97 | 0.00 | 1.08 | -17.95 | 159.36 | 6.80 | 194.85 | 0.4415 | 760.0 | 629.7 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -22.69 | 158.84 | 6.29 | 191.46 | 0.5105 | 505.0 | 480.7 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.07 | 158.66 | 6.10 | 193.32 | 0.4407 | 706.0 | 552.3 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.99 | 157.41 | 4.86 | 190.70 | 0.4353 | -790.0 | -663.5 | |
| 0.00 | 2.50 | 0.00 | 1.39 | -19.43 | 157.32 | 4.77 | 189.91 | 0.4573 | -976.0 | -787.6 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.98 | 157.22 | 4.66 | 190.29 | 0.4347 | -879.0 | -706.5 | |
| 0.00 | 2.77 | 0.00 | 1.54 | -19.63 | 157.13 | 4.58 | 189.45 | 0.4599 | -696.0 | -600.9 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.38 | 157.04 | 4.48 | 189.74 | 0.4404 | -835.0 | -596.5 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -19.46 | 156.84 | 4.29 | 188.92 | 0.4566 | -804.0 | -727.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -19.05 | 156.61 | 4.05 | 188.57 | 0.4497 | -881.0 | -723.4 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.95 | 156.38 | 3.82 | 188.14 | 0.4476 | -743.0 | -594.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
