SDO HMI 2014-09-06 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.54 | 225.69 | 49.40 | 181.52 | -19.57 | 107.31 | -45.24 | 121.88 | 0.7900 | 764.7 | 353.9 | |
|
previous
or next observation for the same group /

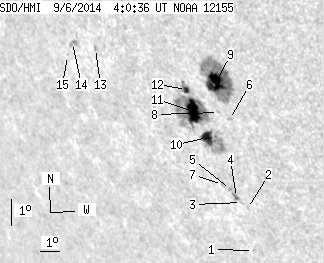

back to the solar disc SDO HMI 2014-09-06 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.75 | -24.47 | 107.63 | -44.92 | 127.45 | 0.8118 | 267.0 | 223.1 | |
| 0.00 | 1.25 | 0.00 | 1.03 | -22.97 | 108.01 | -44.54 | 126.05 | 0.8010 | 310.0 | 291.2 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -22.79 | 107.81 | -44.74 | 125.73 | 0.8017 | 569.0 | 492.5 | |
| 0.71 | 3.39 | 0.59 | 2.80 | -22.63 | 107.65 | -44.91 | 125.47 | 0.8023 | 655.4 | 616.6 | |
| 0.00 | 1.43 | 0.00 | 1.18 | -22.37 | 107.48 | -45.08 | 125.09 | 0.8024 | 795.0 | 683.1 | |
| 0.00 | 2.05 | 0.00 | 1.63 | -19.91 | 108.38 | -44.17 | 122.85 | 0.7821 | 715.0 | 586.2 | |
| 0.00 | 2.05 | 0.00 | 1.70 | -22.23 | 107.16 | -45.39 | 124.76 | 0.8044 | 533.0 | 506.2 | |
| 0.00 | 0.71 | 0.00 | 0.57 | -19.72 | 107.95 | -44.60 | 122.39 | 0.7850 | 603.0 | 473.4 | |
| 25.28 | 88.16 | 19.84 | 68.99 | -18.69 | 108.17 | -44.38 | 121.34 | 0.7779 | 968.3 | 488.2 | |
| 10.81 | 35.37 | 8.83 | 28.78 | -20.64 | 107.11 | -45.45 | 122.97 | 0.7971 | 721.6 | 395.1 | |
| 21.97 | 85.48 | 17.90 | 69.79 | -19.79 | 106.78 | -45.77 | 121.84 | 0.7959 | 851.5 | 233.7 | |
| 2.77 | -11.00 | 2.24 | -11.00 | -19.06 | 106.73 | -45.83 | 120.99 | 0.7930 | 755.8 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.79 | -18.09 | 102.75 | -49.81 | 117.96 | 0.8242 | -615.0 | -494.9 | |
| 0.00 | 2.05 | 0.00 | 1.83 | -18.01 | 101.63 | -50.92 | 117.38 | 0.8335 | -479.0 | -397.4 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -18.48 | 101.18 | -51.38 | 117.71 | 0.8391 | -177.0 | -167.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
