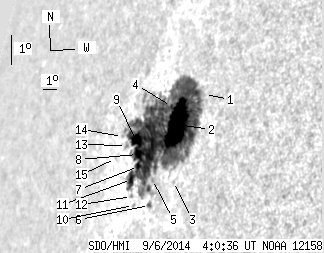

SDO HMI 2014-09-06 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.60 | 496.46 | 97.33 | 578.07 | 14.90 | 86.77 | -65.79 | 76.90 | 0.9065 | 143.3 | -144.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 1.35 | 16.46 | 89.03 | -63.52 | 75.18 | 0.8898 | 320.0 | 258.2 | |
| 55.20 | 483.42 | 62.32 | 562.50 | 15.37 | 87.64 | -64.92 | 76.40 | 0.9003 | 632.4 | -147.0 | |
| 0.00 | 0.89 | 0.00 | 0.98 | 13.68 | 88.34 | -64.21 | 78.30 | 0.8953 | 172.0 | 101.0 | |
| 0.27 | -2.00 | 0.31 | -2.00 | 15.86 | 86.96 | -65.59 | 75.85 | 0.9052 | -70.7 | 999999 | |
| 0.00 | 1.79 | 0.00 | 2.08 | 13.57 | 86.84 | -65.72 | 78.38 | 0.9064 | -318.0 | -277.9 | |
| 0.98 | 3.13 | 1.14 | 3.62 | 12.78 | 87.02 | -65.54 | 79.25 | 0.9053 | -555.9 | -473.8 | |
| 2.86 | -2.00 | 3.49 | -2.00 | 13.83 | 85.59 | -66.96 | 78.05 | 0.9151 | -765.5 | 999999 | |
| 6.07 | -2.00 | 7.46 | -2.00 | 14.17 | 85.31 | -67.24 | 77.66 | 0.9169 | -790.8 | 999999 | |
| 10.81 | -2.00 | 13.46 | -2.00 | 14.57 | 84.98 | -67.57 | 77.22 | 0.9190 | -781.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.51 | 12.65 | 85.84 | -66.71 | 79.35 | 0.9136 | -443.0 | -357.6 | |
| 7.41 | -2.00 | 9.15 | -2.00 | 13.39 | 85.28 | -67.27 | 78.51 | 0.9173 | -456.1 | 999999 | |
| 0.00 | 0.98 | 0.00 | 1.20 | 12.90 | 85.55 | -67.00 | 79.07 | 0.9156 | -305.0 | -298.5 | |
| 0.00 | 2.50 | 0.00 | 3.20 | 14.33 | 84.29 | -68.26 | 77.45 | 0.9236 | 314.0 | 285.4 | |
| 0.00 | 0.98 | 0.00 | 1.28 | 14.56 | 83.80 | -68.75 | 77.19 | 0.9267 | 312.0 | 277.2 | |
| 0.00 | 0.27 | 0.00 | 0.35 | 13.86 | 83.65 | -68.91 | 77.94 | 0.9279 | -233.0 | -189.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
