SDO HMI 2014-09-06 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.80 | 49.74 | 34.77 | 109.15 | -20.46 | 79.52 | -73.03 | 113.05 | 0.9748 | -343.4 | -257.8 | |
|
previous
or next observation for the same group /

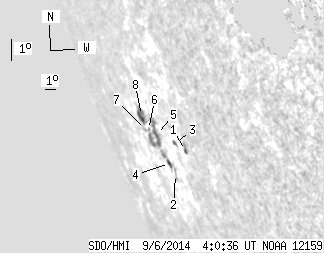

back to the solar disc SDO HMI 2014-09-06 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.98 | 3.93 | 1.80 | 7.17 | -20.59 | 82.39 | -70.16 | 113.83 | 0.9638 | 358.8 | 315.8 | |
| 0.00 | 3.30 | 0.00 | 7.05 | -21.67 | 80.11 | -72.44 | 114.39 | 0.9739 | 386.0 | 285.7 | |
| 0.80 | 2.59 | 1.55 | 4.99 | -20.48 | 81.43 | -71.12 | 113.49 | 0.9677 | 188.1 | 94.9 | |
| 2.05 | 6.52 | 4.44 | 14.20 | -21.34 | 79.88 | -72.67 | 114.00 | 0.9744 | -171.0 | -342.9 | |
| 6.07 | 31.26 | 13.19 | 70.74 | -20.41 | 79.60 | -72.95 | 113.01 | 0.9745 | -625.4 | -413.2 | |
| 0.00 | 1.16 | 0.00 | 2.66 | -20.35 | 78.76 | -73.79 | 112.77 | 0.9774 | -432.0 | -396.8 | |
| 0.00 | 0.98 | 0.00 | 2.34 | -20.40 | 78.33 | -74.22 | 112.74 | 0.9789 | -351.0 | -310.0 | |
| 5.90 | -5.00 | 13.79 | -5.00 | -19.92 | 78.49 | -74.06 | 112.29 | 0.9780 | -326.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
