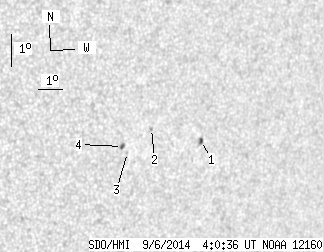

SDO HMI 2014-09-06 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.41 | 7.14 | 1.66 | 4.87 | -8.58 | 193.02 | 40.46 | 249.24 | 0.6884 | -289.7 | -326.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.43 | 2.41 | 1.00 | 1.69 | -8.70 | 194.90 | 42.35 | 250.01 | 0.7109 | 594.4 | 544.9 | |
| 0.00 | 1.25 | 0.00 | 0.85 | -8.14 | 192.79 | 40.23 | 249.75 | 0.6838 | -609.0 | -542.6 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -8.82 | 191.91 | 39.36 | 248.37 | 0.6765 | -553.0 | -475.8 | |
| 0.98 | 2.68 | 0.66 | 1.79 | -8.61 | 191.69 | 39.13 | 248.54 | 0.6728 | -746.7 | -623.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
