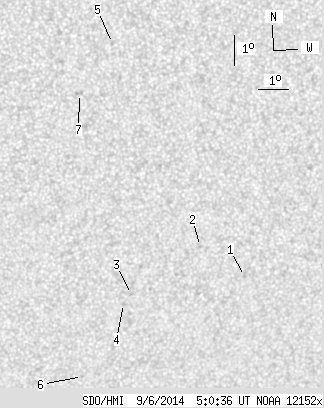

SDO HMI 2014-09-06 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.75 | 0.00 | 4.93 | -16.40 | 167.10 | 15.09 | 212.43 | 0.4708 | 597.9 | 501.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.68 | -18.87 | 171.10 | 19.09 | 215.51 | 0.5349 | 563.0 | 355.8 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -17.80 | 169.50 | 17.50 | 214.42 | 0.5086 | 561.0 | 545.7 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -19.33 | 167.36 | 15.35 | 209.41 | 0.5108 | 720.0 | 554.7 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -19.62 | 167.12 | 15.12 | 208.74 | 0.5129 | 606.0 | 576.2 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -11.07 | 166.16 | 14.15 | 217.68 | 0.3942 | 640.0 | 383.5 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -22.08 | 165.99 | 13.99 | 204.72 | 0.5376 | 328.0 | 391.2 | |
| 0.00 | 2.32 | 0.00 | 1.26 | -12.64 | 165.19 | 13.18 | 213.43 | 0.4055 | 767.0 | 621.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
