SDO HMI 2014-09-06 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.17 | 31.98 | 5.59 | 16.00 | 8.69 | 143.99 | -8.01 | 79.11 | 0.1409 | -117.6 | -65.9 | |
|
previous
or next observation for the same group /

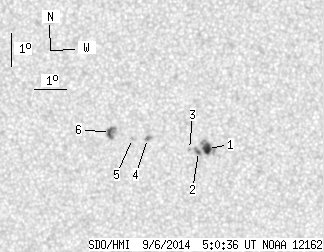

back to the solar disc SDO HMI 2014-09-06 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.16 | 14.11 | 3.08 | 7.04 | 8.56 | 145.10 | -6.90 | 78.71 | 0.1218 | -1203.5 | -811.8 | |
| 1.16 | 3.93 | 0.58 | 1.96 | 8.46 | 144.83 | -7.18 | 79.84 | 0.1262 | -1031.3 | -748.7 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 8.52 | 144.55 | -7.46 | 79.75 | 0.1310 | -869.0 | -639.4 | |
| 0.63 | 3.13 | 0.31 | 1.57 | 8.83 | 143.25 | -8.76 | 79.08 | 0.1540 | 1177.4 | 883.4 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 8.82 | 142.78 | -9.22 | 79.61 | 0.1618 | 865.0 | 684.2 | |
| 3.22 | 8.31 | 1.62 | 4.18 | 8.99 | 142.09 | -9.91 | 79.27 | 0.1738 | 1084.3 | 972.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
