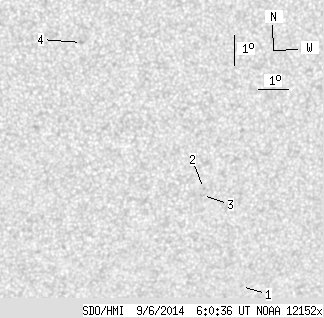

SDO HMI 2014-09-06 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.27 | 0.00 | 3.00 | -16.71 | 168.39 | 16.93 | 214.74 | 0.4889 | 627.8 | 576.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.64 | -20.98 | 171.20 | 19.74 | 214.09 | 0.5648 | 553.0 | 442.8 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -17.59 | 169.51 | 18.05 | 215.49 | 0.5107 | 651.0 | 610.4 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -17.83 | 169.50 | 18.04 | 215.20 | 0.5134 | 519.0 | 552.4 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -12.66 | 165.15 | 13.69 | 214.43 | 0.4103 | 788.0 | 669.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
