SDO HMI 2014-09-06 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.64 | 518.04 | 98.15 | 580.63 | 14.91 | 86.77 | -64.69 | 76.91 | 0.8986 | 177.7 | -155.7 | |
|
previous
or next observation for the same group /

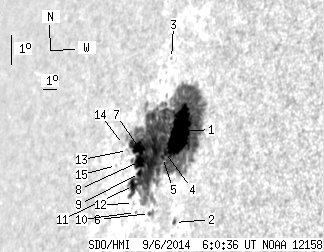

back to the solar disc SDO HMI 2014-09-06 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.57 | 506.79 | 60.48 | 567.64 | 15.40 | 87.62 | -63.84 | 76.38 | 0.8923 | 757.5 | -157.0 | |
| 0.63 | 2.23 | 0.66 | 2.36 | 12.68 | 88.62 | -62.84 | 79.45 | 0.8848 | -318.3 | -368.1 | |
| 0.00 | 0.63 | 0.00 | 0.73 | 17.47 | 85.72 | -65.74 | 74.06 | 0.9062 | 341.0 | 296.4 | |
| 2.05 | -1.00 | 2.28 | -1.00 | 14.67 | 87.00 | -64.45 | 77.18 | 0.8970 | -263.6 | 999999 | |
| 1.07 | -1.00 | 1.20 | -1.00 | 14.50 | 86.88 | -64.58 | 77.37 | 0.8979 | -561.9 | 999999 | |
| 0.63 | 3.48 | 0.70 | 3.89 | 12.76 | 86.82 | -64.64 | 79.31 | 0.8987 | -609.6 | -399.7 | |
| 9.74 | -1.00 | 11.62 | -1.00 | 14.58 | 85.08 | -66.37 | 77.24 | 0.9109 | -877.0 | 999999 | |
| 8.75 | -1.00 | 10.34 | -1.00 | 14.20 | 85.31 | -66.15 | 77.66 | 0.9094 | -820.2 | 999999 | |
| 2.77 | -1.00 | 3.25 | -1.00 | 13.85 | 85.50 | -65.95 | 78.05 | 0.9081 | -816.9 | 999999 | |
| 0.00 | 0.98 | 0.00 | 1.14 | 12.68 | 85.81 | -65.64 | 79.36 | 0.9061 | -302.0 | -289.9 | |
| 6.43 | -1.00 | 7.62 | -1.00 | 13.45 | 85.26 | -66.20 | 78.49 | 0.9099 | -544.3 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.31 | 12.93 | 85.54 | -65.92 | 79.08 | 0.9080 | -338.0 | -335.3 | |
| 0.00 | 1.34 | 0.00 | 1.65 | 14.42 | 84.22 | -67.24 | 77.39 | 0.9168 | 250.0 | 220.9 | |
| 0.00 | 2.05 | 0.00 | 2.57 | 14.56 | 83.80 | -67.66 | 77.23 | 0.9196 | 209.0 | 226.0 | |
| 0.00 | 0.27 | 0.00 | 0.34 | 13.89 | 83.64 | -67.82 | 77.95 | 0.9209 | -79.0 | -93.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
