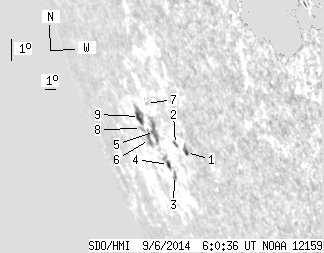

SDO HMI 2014-09-06 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.88 | 50.91 | 34.59 | 103.90 | -20.47 | 79.46 | -72.00 | 113.29 | 0.9709 | -292.3 | -205.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.34 | 4.29 | 2.31 | 7.40 | -20.63 | 82.38 | -69.08 | 114.13 | 0.9592 | 354.4 | 321.6 | |
| 0.89 | 2.59 | 1.61 | 4.68 | -20.47 | 81.52 | -69.94 | 113.76 | 0.9628 | 148.9 | 181.8 | |
| 0.00 | 3.57 | 0.00 | 7.14 | -21.68 | 80.06 | -71.40 | 114.64 | 0.9700 | 412.0 | 326.1 | |
| 1.88 | 5.54 | 3.78 | 11.20 | -21.34 | 79.85 | -71.61 | 114.24 | 0.9705 | 10.4 | -222.3 | |
| 5.27 | 19.56 | 10.60 | 40.26 | -20.27 | 79.64 | -71.82 | 113.12 | 0.9702 | -498.4 | -419.2 | |
| 2.14 | -5.00 | 4.63 | -5.00 | -20.66 | 78.63 | -72.83 | 113.29 | 0.9743 | -409.1 | 999999 | |
| 0.00 | 0.71 | 0.00 | 1.40 | -19.32 | 79.86 | -71.60 | 112.22 | 0.9684 | -291.0 | -323.5 | |
| 0.00 | 2.86 | 0.00 | 6.34 | -20.36 | 78.10 | -73.36 | 112.88 | 0.9759 | -332.0 | -326.6 | |
| 5.36 | 11.79 | 11.66 | 25.48 | -19.93 | 78.42 | -73.04 | 112.51 | 0.9744 | -402.9 | -294.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
