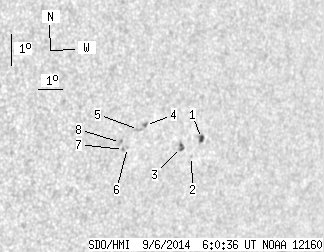

SDO HMI 2014-09-06 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.75 | 16.89 | 2.68 | 11.79 | -8.74 | 193.45 | 41.99 | 249.79 | 0.7068 | -148.2 | -143.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.14 | 3.75 | 1.54 | 2.69 | -8.81 | 195.04 | 43.58 | 250.42 | 0.7254 | 631.6 | 466.9 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -9.35 | 194.70 | 43.24 | 249.57 | 0.7236 | 460.0 | 397.6 | |
| 1.61 | 4.02 | 1.14 | 2.85 | -9.02 | 194.23 | 42.77 | 249.78 | 0.7170 | 565.6 | 474.2 | |
| 0.00 | 1.61 | 0.00 | 1.10 | -8.19 | 192.63 | 41.17 | 250.14 | 0.6951 | -675.0 | -549.1 | |
| 0.00 | 2.95 | 0.00 | 2.02 | -8.30 | 192.36 | 40.90 | 249.87 | 0.6924 | -675.0 | -464.8 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -8.83 | 191.98 | 40.52 | 248.96 | 0.6902 | -590.0 | -583.7 | |
| 0.00 | 1.52 | 0.00 | 1.03 | -8.88 | 191.83 | 40.37 | 248.81 | 0.6886 | -636.0 | -441.8 | |
| 0.00 | 1.61 | 0.00 | 1.09 | -8.64 | 191.68 | 40.22 | 249.06 | 0.6858 | -788.0 | -638.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
